PLC USB 8 Four Module Geya 6 Channel 5V Timer Relay

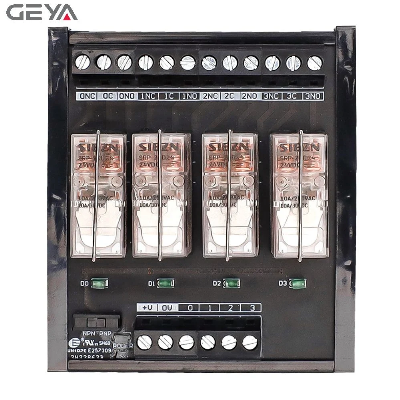

Product DescriptionRelay Modules are designed for current amplification and isolation protection of output loads. Applicable to PLC, microprocessor systems and time relays, etc, amplifying the control current of outputs, to protect key control systems not being destroyed. *DIN Rail optional 1/2/4/8/16 channels relay interface modules *Sub-miniature intermediate power relay, approved TUV, UL, and RoHS compliant. *Switching current up to 10A at 250VAC or 30VDC *Input connections by screw terminal block.NPN& PNP in common use, AC&DC in common use *Relay status indicator LED, surge suppression protection, and overvoltage protection are provided for each relay channel *DIN Rail mountable for width TS15/28/35   Input operating voltageRated DC±20% & AC±10%Relay MountingPluggableRated Load Current10A 250V AC/30V DCMax Transient Load Current10ACoil Powerapprox.0.53WOperate Time(at normal volt.)≤15msRelease Time(at normal volt.)≤10msInput/Output ConnectionsScrew terminal blockWire Range0.2~2.5mm²Stripping Length6-7mmDIN Rail Mountable15/28/35mmRelay QtyDimension(mm)N.W.(g)118*85*7050240*85*70105470*85*702006100*85*702608130*85*7034010160*85*7041012190*85*7048014220*85*7056016250*85*70595  CertificationsPackaging & ShippingCompany Profile /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
