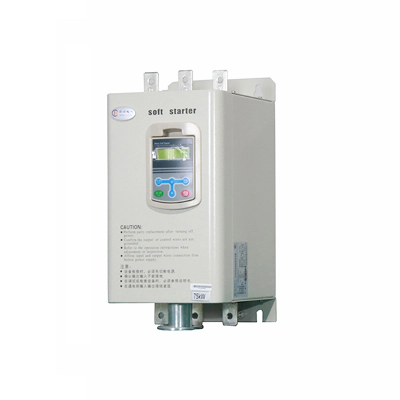

OEM 22kw 380V 220V 690V 1140V AC Compressor Soft Starter Electric

 Product Description   Inspection of product nameplate: Confirm whether the cargo received by you is consistent with the product ordered by you. Service conditions Service conditions have a great influence on normal working and lifetime of the soft starter, thus the soft starter should be installed in the place with the following conditions met.Service conditions of conventional product: Power supply: Electric supply, self-provided power plant and diesel generating set. Three-phase AC: 380V (-20%, +15%), 50Hz. Applicable motor: General squirrel cage asynchronous motor (the wound-rotor motor can be negotiated). Start frequency: The standard product is suggested to be started/stopped not more than 15 times an hour (based on load). Cooling mode: The standard type is natural air cooling. Protective grade: IP00. Environmental conditions: The environment temperature is -25ºC~40ºC, and the humidity is ≤95% (20ºC±5ºC). There are indoor installation and good ventilation instead of condensation, flammable, explosive and corrosive gases and conductive dust. The vibration is less than 0.5G and the capacity should be lowered accordingly for use when the elevation exceeds 2,000 m.  Pursuant to actual rate current of the motor, rated output of soft starter should be reset at the time of use with reduced capacity to ensure accuracy of various control parameters and fault protection.Operating principle diagram:Typical wiring diagram of CGR  series applicationWiring diagram of soft start control cabinet suitable for the power of 75kW and belowWiring diagram of soft start control cabinet suitable for the power of 90kW -160kWWiring diagram of soft start control cabinet suitable for the power of 187kW and aboveProtection level of thermal overload of motor  Typical trip time in motor operation process Unit: Second Current Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 Level 8 1.05Ie360036003600360036003600360036001.20Ie69.384.21021241501812192631.50Ie20.725.230.737.445.555.367.281.61.80Ie11.113.616.520.224.629.936.444.32.00Ie8.210.012.214.918.222.127.032.83.00Ie3.03.74.55.56.78.210.012.14.00Ie1.62.02.42.93.64.35.36.55.00Ie1.01.21.51.82.22.73.34.0Typical trip time in motor starting process Unit: SecondCurrent Level 9 Level 10 Level 11 Level 12 Level 13 Level 14 Level 15 Level 16 1.50Ie99.01201451752112543043632.00Ie40.048.659.171.787.11051281542.50Ie22.627.633.640.849.760.473.388.93.00Ie14.818.022.026.832.639.748.358.73.50Ie10.512.815.619.023.228.334.441.94.00Ie7.99.611.714.317.421.225.931.55.00le4.96.07.38.910.913.316.219.86.00Ie3.44.15.06.17.59.111.213.6 Detailed Photos  Function:Lower starting current of the motor, reduce the power distribution capacity and avoid capacity-increase investment;  Reduce the starting stress and prolong the service life of the motor and related parts;  Various starting modes, setting of wide range of current, voltage and time and adapting to start/stop of the motor based on a variety of loads.Our soft starter is cored on advanced dual-CPU control technology. It controls controllable thyristor module, realizes soft starting & stopping of three-phase AC induction motor, and has wide range of protection functions e.g. overload, input phase failure, output phase failure, load short-circuit, starting limiting overtime, over-voltage, and undervoltage.  Our ProductsOur AdvantagesThe CGR series digital AC motor soft starter is a new type of starting device designed with power electronics technology, microprocessor technology, and modern control theory, which has reached the international advanced level. This product can effectively limit the starting current of asynchronous motors and can be widely used in loads such as fans, water pumps, conveyors, and compressors. It is an ideal replacement for traditional reduced voltage starting devices such as star/delta conversion, autotransformer voltage reduction, and magnetic control voltage reduction.Our CGR  series soft starter has significant advantages in comparison to similar products.Starting mode based on a variety of loads is used There are rich and diverse ways to start and convenient parameter settings, enabling the motor to achieve the best start effect based on different loads. High technical performance Because the high-performance microprocessor and powerful software support functions are used, the control circuit is fully simplified and optimized and consistent and accurate operating performance can be realized without adjustment of circuit parameters. High reliability All electrical elements are strictly screened and the control part of the whole machine is subject to high temperature cyclic test and vibration test which ensures high reliability of outgoing product. Optimized structure Unique module structure and mode of connection entering at top and leaving at bottom are adopted, the anti-jamming technique is introduced, rational layout of control panel is conducted and the keyboard is of I2C bus with small volume. The optimized structur
