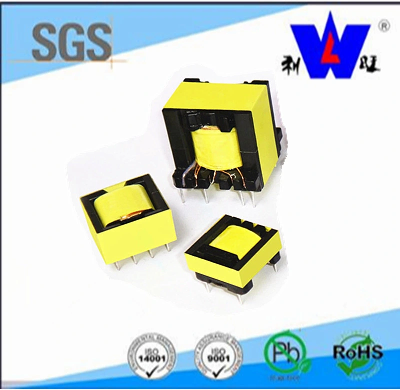

High Frequency Switching Power Ee Series, Small Electrical Transformer

Product description of the Ee High Frequency Transformer for PCB Mounting with ISO9001Specifications:1.Output:0.2W~2KW  2.Current:5A~1200A loads  3.ISO9001,RoHS approval  4.MOQ:1000piece   Features: 1. Custom designs available 2. High efficiency of over 95% 3. High frequency range 10kHz-1MHz 4. High isolation strength 5. Lower profile and weight 6. high power density 7. High-temperature resistant 8. Operating temperature -40°C to +125°C 9. Power range 10w-10kw Primary advantage1.Customers requirements are welcome. 2. custom-made transformer as your design specification 3.We can apply SGS report of materials to prove all the products are ROHS. 4.We have experienced engineers, every one has more than 20 years experience. 5.Every goods must be test three times before shipped to ensure no unqualified products   Application scope:electronic ballast,compact fluorescent lamp ,Television receiver,radio cassette player, PC power supply,Monitor,audio, VCD,DVD,UPS,the electronic apparatus, the noise rejection on the electronic transformer,Induction cooker,etc Dimensions:1. High Flux Density, Permeability and low Loss Ferrite2. High Efficiency and Low Heat Generation3. Designed to Meet Safety Standards: UL, CE, VDE, CQC and RoHS Compliant4. Operating Temperature Range: -10%ºC--+120ºC5. Storage Temperature: -30ºC--+130ºC6. Switching Frequency: 15KHz--200KHz7. Withstanding voltage: 1500V/3750VAC for One Minute between Primary and Secondary8. Insulation Ressitance: 500VDC 100MΩ min. between Primary and Secondary9. Heat Resistance Class: B(130ºC)/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
