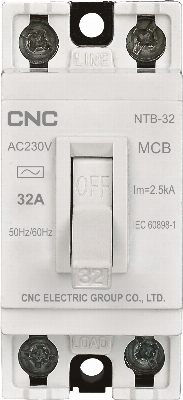

Fashion Conventional Circuit Breaker RCCB Switch Disconnector Overload

Fashion Conventional Circuit Breaker RCCB Switch Disconnector overloadProduct Descriptionfeatures lively machine, excellent quality, beautiful appearance, small volume, and gorgeous color matching., the product is used as a protection switch for power supplying a circuit with AC 50/60Hz. Voltage 220V, current up to 32A, it has inherent overload protection function. Combined with a fuse, it can also provide short circuit protection for a circuit. Besides, it can infrequently make and break a loaded circuit. It is especially suitable for lighting devices in houses and public places, or a single electric appliance such as refrigerator, etc. It conforms with the standards of IEC60898.Rated current In10A, 16A, 25A, 32A, 40APole number2PRated voltage UeAC 230VRated frequency50HzRated overload breaking capacity1.5 KARated shock withstand voltage4 KVHigh-voltage insulation2KA/1 minTripping styleOverload trippingMechanical life10000 timesElectrical life4000 timesProtection levelIP20Fiducial temperature30ºCAmbient temperature-5ºC to +40ºCStorage temperature-35ºC to +70ºCResistance to damp heat2 types(temperature 55ºC,relative humidity 95%)Installation typeScrew fastening card mounting with panelTerminal wiring capability2.5mm²Flame retardant gradeV-0Tightening torque2.5N*m 22In-IbsPollution degree2ConnectionCassette connection  Detailed PhotosProduct DetailKey wordsCircuit BreakerHousing materialPFRated current In10A, 15A, 20A,25A, 30A,40APole number2P1E/2P2E OptionalRated voltageAC110V-240VRated overload breaking capacity1.5 KAFrequency50/60HzRated shock withstand voltage2KVHigh-voltage insulation2KA/1STripping styleOverload trippingMechanical life10000 timesElectrical life8000 timesProtection levelIP20Ambient temperature-5ºC to +40ºC   Company ProfileCNC Electric Group Co., Ltd. is a non-regional enterprise group approved and registered by the National Industrial and Commercial Bureau. Under drastic market competition, we are always trying to develop the national industry and depend on technology and technique. Thus, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprises on scale and developing potentiality./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
