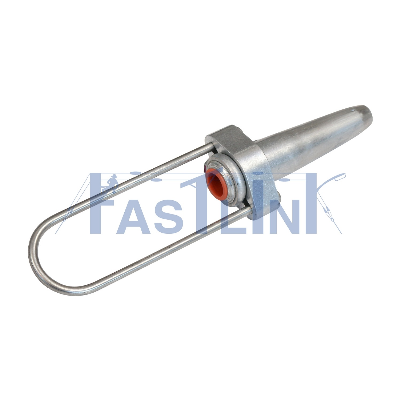

Automatic Strand Deadend for All Grades of Galvanized Steel Wire

AUTOMATIC STRAND DEADENDProduct DescriptionThe Automatic strand deadend &Splice is used primarily by telephone and electric utilities to terminate strand or rod at the pole top and at the anchor eye. For Suspension Strand, Guy Strand and Static Wire. Used to terminate aerial support strand messenger, and at the top and bottom ends of down guys. All-Grades Automatic strand deadend is for those 7-wire strands and solid wires identified by name brands, coatings, types of steel, and within diameter ranges listed, but not 3-wire strand and not Alumnoweld. Recommended use on Galvanized zinc coated, Aluminized, and Bethalume. Note: Can be used with all breaking strengths for galvanized guy strand messenger. Features: • Rated to hold a minimum of 90% of RBS of the strand used Application:• For deadend applications with overhead or down guy wire• "Universal Grade" are recommended for use with Alumoweld, Aluminized, EHS and Galvanized Steel• "All Grades" are recommended for use on Common Grade, Siemens-Martin, High Strength Utility Grade, Galvanized and Aluminized steel strand Technique parameter  Item No.Bail ¢(mm)Dimensions(mm)Wire RangeWeight(g) XYZinchesmm Automaticn Strand Deadend3/16"4.524412140.138-.2173.5-5.5180 Automaticn Strand Deadend1/4"5.223310141.240-.2726.0-6.8162 Automaticn Strand Deadend1/4"L5.232610141.240-.2726.0-6.8221 Automaticn Strand Deadend1/4"EHS5.825112141.215-.2705.46-6.86250 Automaticn Strand Deadend1/4"EHS- L5.834412141.215-.2705.46-6.86293 Automaticn Strand Deadend5/16"6.823411337.6.307-.3437.8-8.7300 Automaticn Strand Deadend5/16" L6.834311337.6.307-.3437.8-8.7357 Automaticn Strand Deadend5/16"EHS726513644.270-.3156.85-8.0380 Automaticn Strand Deadend5/16"EHS-L739913644.270-.3156.85-8.0480 Automaticn Strand Deadend3/8"829413241.360-.4059.1-10.3480 Automaticn Strand Deadend3/8"L843213241.360-.4059.1-10.3591 Automaticn Strand Deadend3/8"EHS833816350.8.325-.3928.2-9.96620 Automaticn Strand Deadend3/8"EHS-L843116353.8.325-.3928.2-9.96700 Automaticn Strand Deadend7/16"EHS1037517055.392-.4559.96-11.63874 Automaticn Strand Deadend7/16"EHS-L1046317055.392-.4559.96-11.63977 Automaticn Strand Deadend1/2"EHS10.341418052.455-.52011.55-13.2970    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
