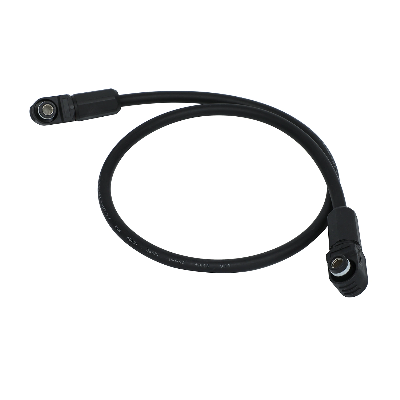

Solar Cable Assembly DC Battery Cable for Ess Solar Inverter

Product Descriptionhttps://xsdsingder.en.made-in-china.com/product-list-1.htmlOverview ProductSolar Cable Assembly DC Battery Cable Energy Storage Cable for ESSPlug/SocketRated Current60A~600ARated Voltage300V~2000VOperating Temp.-40~125CWireModelNSGAFÖU Rubber Wire, UL1015, UL10269, UL11627, UL3321, UL3271, etc.Size1mm2~120mm2Lug/TerminalModelSC1.5~SC120Applicable Wire Range1mm2~120mm2Crrugated PipeOptionalFeaturesIP67 Waterproof, Flame Retardant, High Temperature RetardantTouch Proof, Safe Handling, Durable Design, Reliable ConnectionQuick Lock, Press-to-Release Design, High Pressure ResistanceApplicationSolar Energy Storage System(ESS)Energy Storage Cabinet, Battery Pack, Battery Storage TankEnergy Storage Converter, Power Energy Storage SystemVerificationUL, VDE, CCC, ISO 9001, IATF 16949, RoHS, REACH, etc.OEMWelcomedPlug/Socket ModelPlug Datasheet1. MaterialShell: PA66+30%GFElectrical Copper Row: Brass, Sliver-plated2. Electrical PerformanceRated Current:  60A,100A,120A,150A,200A, 350ARated Voltage: DC690VImpulse Withstand Voltage: AC5000V, Leakage≤1mAInsulation Resistance: DC1000V, Resistance Value≥1000MΩ3. Operating EnvironmentOperating Temp.: -40ºC~125ºCOperating Humidity: 5%~95%RHFlame Resistance: UL94 V-0Salt Spray Test: 48HSocket Datasheet1. MaterialShell: PA66+30%GFElectrical Copper Row: Brass, Sliver-plated2. Electrical PerformanceRated Current: 100A, 150A, 200A, 250A, 350ARated Voltage: DC690VImpulse Withstand Voltage: AC5000V, Leakage≤1mAInsulation Resistance: DC2500V, Resistance Value≥2000MΩ3. Operating EnvironmentOperating Temp.: -40ºC~125ºCOperating Humidity: 5%~95%RHFlame Resistance: UL94 V-0Salt Spray Test: 48H    Wire Model ModelSizeRated VoltageRated TemperatureInsulationConductorUL101520~2/0AWG600V105ºCPVCTinned or Bare, Stranded or Solid CopperUL1026920~2/0AWG1000V105ºCPVCUL1162720~2/0AWG2000V105ºCPVCUL327120~2/0AWG600V125ºCXLPEUL332120~2/0AWG600V150ºCXLPENSGAFÖU1.5~120mm²1.8/3KV-40~90ºCRubber Lug/Terminal Model ModelWire Range A.W.G.(mm2)Stud Size (mm)MaterialMin.Max.CuSC1.512AWG (1.5mm2)4.36.4SC2.514AWG (2.5mm2)4.38.4SC412AWG (4mm2)4.38.4SC610AWG (6mm2)4.38.4SC108AWG (10mm2)4.313SC166AWG (16mm2)4.310.5SC254AWG (25mm2)4.210.5SC352AWG (35mm2)6.410.5SC501/0AWG (50mm2)5.313SC702/0AWG (70mm2)5.313SC953/0AWG (95mm2)6.415SC1204/0AWG (120mm2)6.417 Certification Detailed Photos About ushttps://xsdsingder.en.made-in-china.com/company-Dongguan-XSD-Cable-Technology-Co-Ltd-.html  Since our establishment in 2013, XSD Cable has been one of the professional manufacturer in the field of wire and cable. We are an one-stop solution provider for wires, cables, cable assembly. We are now serving a wide range of market segments includes: new energy, industrial applications, home appliance and equipment, automobile application, robotics application, etc. XSD Cable has been certified by UL, cUL, VDE, CE and CCC, and Quality System is in accordance with ISO 9001 and IATF 16949. Offering superior service to achieve your project is our goal.★Main Products: UL AWM Cable, Wiring Harness, Cable Harness, Solar Cable, Solar Wire Harness, MC4 Jumper Wire, Energy Storage Cable, Cable Assembly, Automotive Wire, Industrial Wire, Hook-up Wire, PV Wire, Robotic Cable, High Temperature Cable, LSZH Cable, Halogen-free Cable, Flat Ribbon Cable, USB Cable, HDMI, DVI, VGA and so on.★Insulation Materials: PVC/PE/PP/XLPE/LSZH/PTFE/PFA/FEP/SILICONE RUBBER/TPU/TPE/Rubber and so on. ★Our Advantage:1 week to finish your sample.2 hours to quote with competitive price in fastest.3 advantage are Excellent Quality, Superior Service, Best Price.6,800 m2 factory area to prepare your order.7 days to complete your order in fastest.10 years' experience in manufacturing wire and cable.80 sets of main production equipment and will be more in the future.  We are keen to talk more and support you more whether it is a deal or not. Please contact us without hesitation if you have any demands.Contact us : https://xsdsingder.en.made-in-china.com/contact-info.html  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
