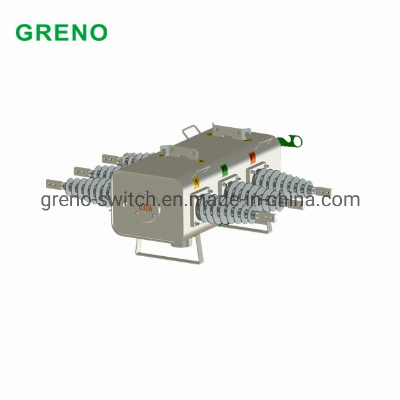

Pole Mounted Lbs, Sf6 Switch

!! CUSTOMER CESI CERTIFICATED !!We are ManufacturerOverviewPole mounted insulation load break switch, type GPS-24/630-20 is suitable for the rated voltage 24kV,rated current 630A,50/60Hz power grid open circuit,load current in closed Power system,overload current. This load break switch can separate those broken distribution line automatically. With the latest technology, it has the newest electronic controller.The switch can be used by manual operation, electric operation and operation from a long distance. Electronic controller is installed in a stainless steel cabinet which is suitable for using under all kinds of climatic conditions. In addition, there are some wired and wireless modem installed in the cabinet through which it can realize the remote monitoring and control. Simple installation on pole is convenient, fast, and also can reduce the construction cost. The standard conditions of use     Operating conditions for SF6 gas load break switch to adapt to:1 Ambient temperatureAmbient air temperature: upper limit +50 ºC, lower limit of -40 ºC.Relative Humidity: 100%2 Elevation does not exceed 1000m;2000m;3000m;5000m3 The pressure does not exceed 700pa (equivalent to wind speed of 34m / s).4 Earthquake intensity: 8 degrees.5 Installation site: No fire, no explosion hazards, no chemical corrosion and recurrent severe vibration.6 Pollution class: class III, class IV. Features Features1 SF6 gas-insulatedSF6 gas is a kind of nontoxic, nonflammable and electrical insulating gas. It has the excellent characteristic of arc extinction.2 Drive pipe with large diversity In addition to the standard ceramic drive pipe, we can also provide a variety of solutions, including rubber insulators used in the epoxy resin filling equipment.3 Visible open / closed statusIt is easy to see the main contact position indicator which is color-coded just standing on the ground (Green - off; red - closed). The indicator is directly connected with the main contacts of the drive shaft assembly to ensure accurate display of contact states.4 Quick operationoperating mechanism with spring energy to ensure a quick closing and opening operation (less than 100milliseconds). 3.5 Can realize remote control5It is equipped with electronic controller, fit for in situ operation as well as FTU interface console operation.6 Rugged switchThe switch is made of proven durable, corrosion-resistant materials (special used in warships 304L stainless steel plate)which ensures that there is a very long service life (30 years), and can be implement a series of operations.It has the ideal characteristics as a column equipment.7 StandardEach switch before leaving the factory has been filled with SF6 gas, sealed, and test according to IEC60265-1, GB40.504 standard.  Type and Rating Product mode: GPS-24/630-20/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
