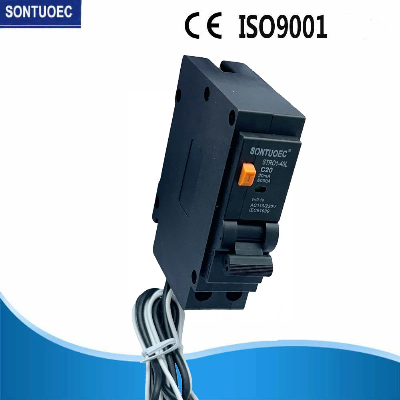

25mm Width RCBO 1p+N Circuit Breaker with CE Approvals

SONTUOEC 18MM 6KA Circuit Breaker With Overcurrent Protection RCBO MCB 1P+N up to 40ASTRO-40L:Function and Feature:Provides protection against earth fault/leakage current,short circuit,overloadProvides complementary protection against direct contact by human bodyEffectively protects electric equipment against insulating failureHandle can be locked with pad-lock to prevent unwanted operation for safety. Normal working & installment conditions1.Ambient temperature: -5ºC~+40ºC, 24 hours average temperature not exceed +35ºC.2.Installment plance altitude: ≤2000m3.Gas relative humidity:not exceed 50% at +40ºC, higher humidity allowed at lower temperature.4.Pollution degree: 2 class5.Installment condition: Mounted in the place without obvious impact or shock, no dangerous(explosion) dielectric without corrosive metal or damaging isolation gas(conductive dust).6.Installment method: TH35-7.5 mounted rail, can be installed in distribution board, case or box. Generally mounted vertically. Tilted angle between mounting face and vertical face not exceed ±5°.7.Mounted Category: II,III class. SandardIEC/EN61009-1ElectricalfeaturesType(wave form of the earth leakage sensed) Electronic typeRated current InAA,ACPolesP1P+N Rated voltageVAC 230Rated Current : 6,10,16,20,25,32,40ARated sensitivity I△nA0.01,0.03,0.1,0.3,0.5Insulation voltage UiV500Rated residual making andbreaking capacity I△mA630Short-circuit current I△cA6000SCPD fuseA6000Rated frequencyHz50/60Pollution degree 2MechanicalfeaturesElectrical lifet4000Mechanical lifet10000Protection degree IP20Ambient temperature(with daily average ≤35ºC)ºC-25~+40Storage temperatureºC-25~+70InstallationTerminal connection type Cable/U-type busbar/pin-type busbarTerminal size top/bottom for cablemm225AWG18-3Terminal size top/bottom for busbarmm225AWG18-3Tightening torqueN*m2.5In-lbs22Mounting On DIN rail EN 60715(35mm)by means of fast clip deviceConnection From top and bottomFAQQ 1. what's the payment term?   A. We accept TT,30% deposit and 70% balance agaisnt copy of BLQ 2. how's the delivery time ? A. usually it will take about 25 days for productionQ 3. tell me the standard of package?   A. Normally are cartons, but also we can pack it according to your requirement.Q 4.Would you accept to use our logo ? A.If you have good quantity,it absolute no problem to do OEM.Q5. Can i take some samples?A: Yes, we support to take samples before place the order. Just feel free to contact with us if you have any requirements.Q6. Are you original Factory?A: Yes, we have our own factory .Q7. How can you make sure the quality of the products?A: We will accord to international quality standards to inspect every item before leaving our factory.Thanks for your reading.If any product meets your need.Welcome to send us an email.We are sure your any information can be attentioned without any delay./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
