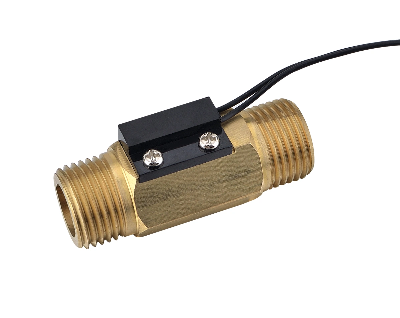

Mr-2260 Brass Liquid Flow Sensor/Magnetic Flow Switch

MR-2260 brass liquid flow sensor/Magnetic flow switchOperating principle As liquid passes through the flow sensor body, the magnetic rotor spins at a rate proportional to flow. This Causes a series of magnetic fields (the rotor vanes) to excite the Hall Effect sensor, producing a series of voltage pulsesSpecificationsElectronic water flow sensor  FLW010011.Low cost 2.Long life 3.Simple installation 4.Wide applicationsIntroductionFlow switch consists of magnetic core, rotating impeller, external casing and reed switch. Flow through the sensor activates the magnetic core to trigger switch action, with signal output.Max contact power10W50WMax switch voltage100VDC/100VAC350VDC/300VACMin breakdown voltage150VDC600VDCMax switch currentDC0.5ADC0.7A / AC0.5AMax carry current1.0A2.5AMax contact resistance100mΩ100mΩMin insulation resistance109 Ω1010 ΩContact Life107 times107 timesFlow rate range (L/min)1.5 ~ 15, 1.5 ~ 30, 1.5 ~ 501.5 ~ 15, 1.5 ~ 30, 1.5 ~ 50Max carry pressure1.2Mpa1.2MpaFeatures* Imported components of the magnetic switch* Simple working principle* Highly reliable* Easy to install* No standby power requirements* Cheap costsApplicationsIt is used in the control of water circulation, water charging and discharging, water heating, water pump switch on and off of solenoid valve, or powering on and off of water discharging for electric water heater, solar energy water heater, air condition and other water systems. Package Standard plastic bags and cartons, also we can provide customized design for all kinds package.        Production LineOur factory management is in accordance with international 5S standards, strict requirements and supervision of the various production processes.   Latest Exhibitions    We attended the Electronica in Germany in Sept 2016, new products have won the praise of many buyers.     Certifications                /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
