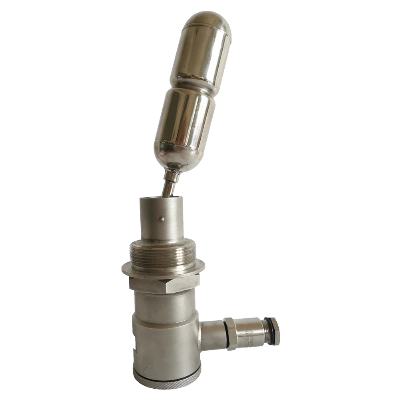

Adjustable Long Life Easy Install Magnetic Float Level Switch

                                                                                 UQK Float Level SwitchProduct Instruction  Working principleThe UQK magnetic float level switch uses the principle of liquid buoyancy to make the float move up and down due to buoyancy. The micro switch in the junction box is affected by the magnet at the end of the float arm to make the actions of closed and open.Features1.No external power supply, passive output contact;2.Long life span, stable and reliable operation, easy installation, almost no maintenance; 3.Applicable for all kinds of bad medium environment with density ≥0.45g/cm³;4.Wide application range. Pressure 0~PN160, temperature -20~+200ºC;5.Anti-explosion design;6.OEM Customization.Main technical parametersInstallation typeDN50/RF/PL HG/T 20592-2009(standard) or customizedMedium Density>0.45 g/cm3Switch condition&Qty1*SPDTSwitch capacity220VAC 200VAC(Resistive load)220VDC 150WMaterialSS304(standard), SS316LHousing materialSS304Ambient temperature-20~60ºCWorking temperature-20~85ºC; -20~120ºC; -20~200ºCWorking pressure1.0~16MPa (can be customized when>16MPa)Electrical connectionM20*1.5IP gradeIP65,IP67Anti-explosion gradeExdIICT6Gb Company Profile Sichuan VACORDA Instruments Manufacturing Co., Ltd.is a professional production- manufacturing enterprise specialized in designing, producing and marketing of instruments and apparatuses. Our company has been established for 22 years since 1997 to grow up to be a team of high-quality, united, hard-working and truth-seeking characters. Solid foundation has been established.In 2017, we moved into our new factory which occupies the area about 20000 square meters, the workshop of 6900 square meters, R&D department of 1180 square meters, integrated office building of 1260 square meters, and we have established the high accuracy flow calibration lines.Products ApplicationOur products are widely successfully used in steel, metallurgy, petroleum, chemicals, machinery, food, light industry and other industries in the production process and control, some products have been repeatedly supporting exports.Certifications                           /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
