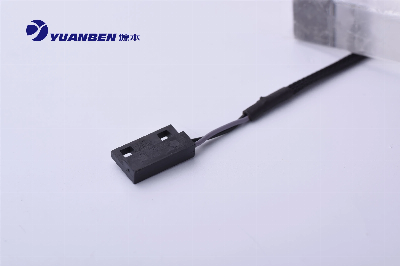

Magnetic Contact Switches Door Switch Reed Switch

Magnetic Contact Switches Door SwitchMagnetic contact switches are best for refrigerator equipment, package machines, security doors. etc. The separate type proximity switches, its sensitive distance is 6~20mm, combination various switch units and magnet units. Directly control on 200Vdc or 220Vac without power supply unit or amplifying relay. No erroneous operations due to noise and surge, assures maintenance free operation and long life. The mounting is simple.  Specifications   ItemTechnical ParameterPressure Setting RangeAutomatic Reset:0.1Mpa-3.05Mpa;Manual reset:2.5Mpa-3.4MpaElectrical Ratings120/240VAC,375VA;28VAC/VDC,2A 120VAC, 5.8FLA, 34LRA; 240VAC, 2.9FLA, 15LRAAmbient Temperature and Humidity-35ºC+120ºC;less than 95% RHContact ResistanceLess than 100mΩInsulation ResistanceMore than 100mΩDielectric Voltage WithstandWithstand 1500vac for one minute without breakdownBurst Pressure35Mpa for one minute without body rupture and seals failureLeakageTotal maximum allowable leak rate of 7*10-6cc/sec of at least 70% helium at 1.0MpaDurability100,000 cycles(automatic);6,000 cycles(Manual)Flame RatedUL94V-0Photos/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
