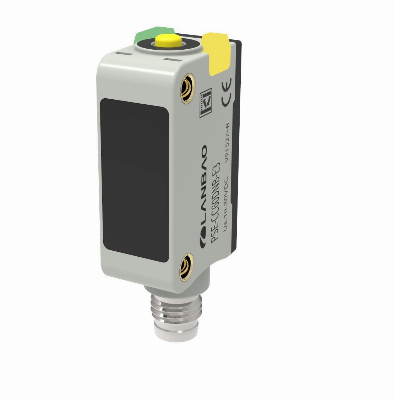

LANBAO Plastic square shape photoelectric sensors PSE series Features♦Universal housing, an ideal replacement for a wide range of sensor types;♦IP67, suitable for harsh environments;♦One-key distance setting, accurate and fast setting♦Using TOF principle, the difference between black and white of the product is small, and the detection is stable NPN NO/NCPSE-CC60DNB-E3PNP NO/NC PSE-CC60DPB-E3 Detection type TOF ReflectionDetection range 0.5...60cm Adjustment range 8...60cm Output typeNPN NO/NC or PNP NO/NC Operating temperature -20...55ºC(No condensation,No icing) Response Time ≤100msHysteresis3…20% Indicator Green light: power; Yellow light: outputAdjustment methodButton adjustment Protection circuitShort circuit protection,Polarity protection, Overload protection Supply voltage 10...30VDC Storage temperature -25ºC…70 ºC Consumption current ≤20mA Protection degree IP67 Load current ≤100mA Certification CE Voltage drop ≤1.5VShell materialPC+ABSAnti ambient light Sunshine ≤10,000Lux Weight50gLight sourceInfrared laser(940nm)Connection M8 4-pin connector AccessoryMounting Bracket ZJP-8Light spot size Ф130mm@60cmNO/NC adjustment Press the button for 5...8s, when the yellow and green light flash synchronously at 2Hz, and lift. Finish state switch. Distance adjustment Press the button for 2...5s, when the yellow and green light flash synchronously at 4Hz, and lift to finish the distance setting. If the yellow and green lights flash asynchronously at 8Hz for 3s, and the setting fails. Dimension Wiring diagramAbout LANBAO In the "Blue Book of China Sensor Technology Industry Development", Lanbao Sensor is evaluated as one of the enterprises with the largest variety, the most complete specifications and the best performance of sensors in China, and identified by the China Instrumentation Industry Association as the best choice to replace imported products.Lanbao is a modern enterprise that integrates R&D, intelligent manufacturing and sales, including photoelectric sensors, proximity sensors, laser distance measurement sensors, microwave sensors, ultrasonic sensors, 3D line scanning sensors and other intelligent sensors.LABAO Partner Lanbao's safe and reliable sensors are sold to more than 100 countries and regions and receives unanimous praise and favor from customers worldwide.LANBAO ExhibitionWe are committed to meeting customers' needs and optimizing the quality of human life. Lanbao aims at breaking through technical bottlenecks, strives to overcome difficulties to supply customers with reliable, sustainable and guaranteed products, and creates unlimited value for customers.LANBAO CertificationWe are the first Chinese sensor manufacturer who designs our own smart production workshop:totally 40products lines including complete production lines which worked with Mitsubishi (Japan). 200 staffsinproduction line and 3million products per year.Factory processFactory process FAQQ : What is the MOQ?A : 1pcs for our own available designsQ : Can I customize a special sensor?A : SureQ : Can I get a lower price if I order large quantities?A : Yes, Cheaper prices with bigger size ordersQ : Can I get a sample?A : Of course, but you need to pay the minimum sample feeQ : When will you ship my order?A : 1 day shipping guarantee for stock item and 3-4 weeks for non-stock items.Q : How about the quality guarantee period ?A : Our warranty period is one year since from shipping date.Q : Can I add or delete items from my order if I change mind?A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.Q : How can you guarantee the production quality?A : The quality of our products has passed UL&CE&ISO140001&IS09001certification. We have 20+ years professional sensor manufacturing history and 18+ years ODM labeling experience with global top sensor brands. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
