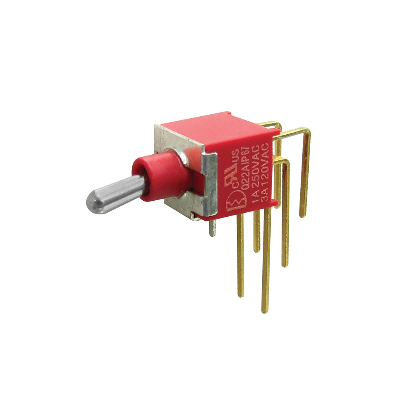

Waterproof Toggle Switch with Right Angle Terminal1.) About ProductPart A (Technical Data) SpecificationsCircuit: SPDT.DPDTContact Rating1A 250VAC/ 3A 120VAC 28VDCInsulation resistance1,000ΩMmin.Contact resistance20mΩmax. initial @ 2-4VDC,Dielectric Strenngth 1,000 Vrms min.@sea level.Mechanical Life 40,000 make-and-break cycles.Operating temperature -40°C to 85°C.MaterialsHousingStainless steelCase & BushingGlass filled nylon 6/6, flame retardant (UL94v-0)ActuatorBrass,chrome platedTerminalsCopper alloy, silver or gold platedPart B (Image of Product and Safety/ Quality Approval) 2.) About YeswitchesPart C: Yeswitches Development HistoryYeswitches Electronics Co.,ltd., found in 1995, is one of the professional manufacturers of switches in Taiwan. We are specializing in manufacturing all kinds of switches, including Metal Push Button Switches, Automotive Switches, Key Switches, Push button Switches, Toggle switches, Rocker switches and Slide Switches etc.;Yeswitches is a ISO9001 certificated company, Most of Yeswicthes products are UL certificated, RoHs and SGS compliant and meet IP 67 or IP68 standard as well;Yeswitches got fast and stable development in the past 25 years. We have our own Injection Dept.,R&D Dept.,Engineer Dept.,Production Dept.,and QA Dept.; Thus, with these advantages,Yeswitches can provide brillirant high quality products but still in best price;For now, Yeswitches owns 20-30 experienced engineers, 100-120 units machines including CNC,Injection and Molding machines (Including 200 tons - 50 tons horizontal machines and 50 tons (2-3 oz) vertical injection molding machines), Die Casting machines (Including 200 tons - 8 tons for Zinc alloy and 650 - 250 tons for Aluminum alloy) and 5 production lines to meet 500000-800000 units production capacity per month;Yeswitches products are selling to all over the world ( Europe, America, South Asia etc.), the switches for Elecvators, Cars, Mowers etc. you are using may built by our Yeswicthes company.Part D: Yeswitches Showroom (facility, office, workshops, machines, quality contral and certificate)For more information, pls click our website: yeswitch2018.en.made-in-china.com /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
