Ultra-Low Power 5mA Sony Chip GPS&Glonass Modules Gnss Module

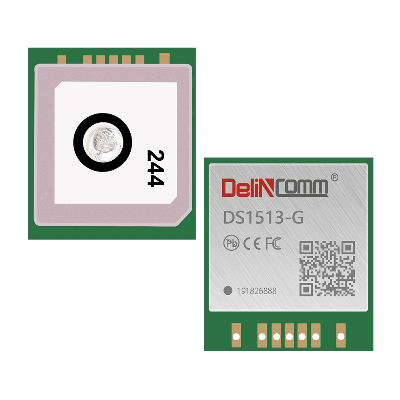

Product DescriptionUltra-low power 5mA Sony chip GPS&Glonass modules GNSS antenna module Product Parameters       The DS1513-G is a complete GNSS engine module that features super sensitivity, ultra low power and small form factor. The GNSS signal is applied to the antenna input of module, and a complete serial data message with position, velocity and time information is presented at the serial interface with NMEA protocol or custom protocol. ApplicationsLBS (Location Based Service)PND (Portable Navigation Device)Vehicle navigation systemMobile phoneFeaturesBuild on high performance, low-power SONY CXD5603GF chip setUltra high Track sensitivity: -165dBmExtremely fast TTFF at low signal levelBuilt in high gain LNALow power consumption: Max [email protected]NMEA-0183 compliant protocol or custom protocolOperating voltage: 2.8V to 5.5VOperating temperature range:-40 to 85ºCPatch Antenna Size: 12x12x4mmModule Size: 15.25x13.1x6.55mmCommunication type: UART/TTLRoHS compliant (Lead-free)Key FeaturesParameterSpecificationPower SupplySupply voltage: 2.8V~5.5V Typical: 3.3VPower Consumption Acquisition: 8mA @VCC=3.3VTracking: 6mA @VCC=3.3Vldel mode: 1.5mA @VCC=3.3VSleep mode: 100uA@VCC=3.3VReceiver TypeCode 66 search channels, GPS&QZSS L1 1575.42MHz C/A22 simultan ous tracking channelsSensitivityTracking: -165dBmRe-acquisition: -160dBmAcquisition: -147dBmTTFF (Autonomous)Cold start: 35s typ @-130dBmWarm start : 30s typ @-130dBmHot start : 2s typ @-130dBmHorizontal Position Accuracy (Autonomous)
