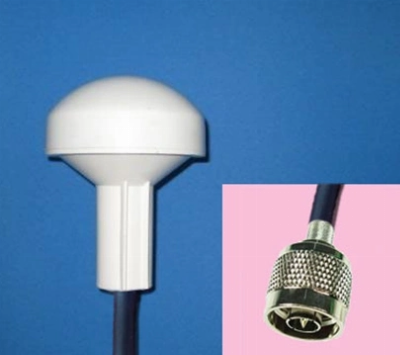

GPS Antenna with 37db Lna Cltx-37an-1

Brief introductionCLTX-37AN-1 is an antenna with 3-stage LNA (Low Noise Amplifir). It is widely used in GPS positioning and timing for navigation, time synchronization etc.CLTX-37AN-1 is with N type of connector.Operation EnvironmentTemperature:Operating: -35°C to +76°CStorage: -55°C to +95°CHumidity: 0%-100% non-condensingOutline Dimensions  Item  Indicators  Frequency Range (MHz)  1575.42±2MHz  Gain(dBi)  ≥37dB  Polarization  Right hand circular  Axis Ratio(dB)  < 3  Front to Back Ratio (dB)  > 10  3dB Beam Width (°) 3dB  110±10  Supply Forms  COAXIAL  Operating Voltage (V/DC)  3.0~5.0VDC  DC Current (mA)  ≤45  Cable Type  CNT195  Connector Type  N  Impedance (Ω)  50Ω  Anti-surge Performance  ACCORDING GB/T17626.5-1999;IDTIEC 61000-4-5: 1995STANDARD/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
