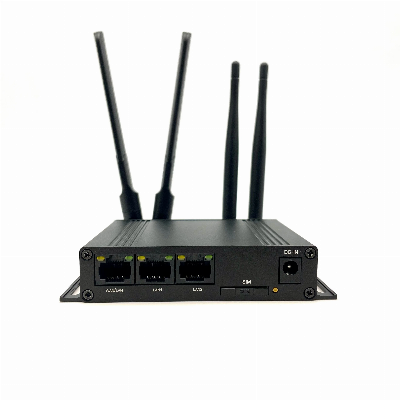

4G LTE Industrial Router with RS485, RS232 Ports.

4G LTE CAT 4 industrial router HDRM100 • 2G/3G/4G LTE data transmission. Support global frequency bands.• Active auto connect;• Built-in watchdog, system crashes self-recovery.• Built-in link maintenance mechanism, data link dropped from self-recovery.• 2*2  MIMO 4G/WIFI antenna.• Supports 3G/4G LTE,WIFI funtion.• Supports GPS funtion. (Optional)• Supports 4G LTE CAT 4.• WIFI High quality performance without congestion.• 1* WAN/2* LAN or 3* LAN ports, 1*RS485 or 1*RS232 port.• With SIM card slot or eSIM card.• Wide power supply: +6V/2A~+36V/0.3A• Remote management platform.• Firmware version: Openwrt 18.06.• Dimension:115 * 73 * 23 mm.Product features  Wireless Mobile Broadband 2G/3G / 4G LTE Connection. Supports 2G/3G/4G LTE global frequency bands. System crashes and automatically recovers. The system automatically maintains the data link and is permanently online.   Supports 2*LAN fast Ethernet ports to internet access. Support the second LAN port for POE power output for external devices.(Optional) Supports Multiple VPN tunnels for data encryption .Designed for industrial usage  Power Input Range.  DC +12V/1A to +36V/0.5A  Industrial design for harsh environment.   ABS fireproof plastic material shell.  Supports waterproof, dustproof and lightning proof feature,meet the requirements of grade IP65.  Easy to use and easy maintenance  User friendly web interface for user interaction.   Supports Central Management Platform.  Supports  local web UI and remote FOTA update firmware.  Operating system  Built-in OpenWRT 18.06 operating system. Supports user secondary application development.SPECIFICATIONS  Cellular feature2G/3G/4G LTEdata connectivityIt provides data connectivity on LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA networks.2G/3G/4G  LTEFrequency bandsVersion C     LTE-FDD. B1, B3, B5, B8     LTE-TDD.  B38, B39, B40, B41     WCDMA. B1, B8     GSM.900/1800MHzVersion E.     LTE FDD: B1/B3/B5/B7/B8/B20,B28A     LTE TDD: B38/B40/B41     WCDMA: B1/B8     GSM: B3/B8Version A.    LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71    WCDMA: B2/B4/B5Version AU.    LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28    LTE TDD: B40    WCDMA: B1/B2/B5/B8    GSM: B2/B3/B5/B8Version J    LTE FDD: B1/B3/B8/B18/B19/B26    LTE TDD: B41    WCDMA: B1/B6/B8/B19Remarks. More 4G LTE frequency bands,Please feel free to contact us.2G/3G/4G LTEData ratesLTE.LTE FDD: Max 150Mbps (DL)/Max 50Mbps (UL)LTE TDD: Max 130Mbps (DL)/Max 30Mbps (UL)UMTS.DC-HSDPA: Max 42Mbps (DL)HSUPA: Max 5.76Mbps (UL)WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)GSM.EDGE: Max 296Kbps (DL)/Max 236.8Kbps (UL)GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)2G/3G/4G LTETransmitting Power Class 4 (33dBm±2dB) for GSM850 Class 4 (33dBm±2dB) for EGSM900 Class 1 (30dBm±2dB) for DCS1800 Class 1 (30dBm±2dB) for PCS1900 Class E2 (27dBm±3dB) for GSM850 8-PSK Class E2 (27dBm±3dB) for EGSM900 8-PSK Class E2 (26dBm±3dB) for DCS1800 8-PSK Class E2 (26dBm±3dB) for PCS1900 8-PSK Class 3 (24dBm+1/-3dB) for WCDMA bands Class 3 (23dBm±2dB) for LTE-FDD bands Class 3 (23dBm±2dB) for LTE-TDD bands2G/3G/4G LTESensitivityLTE B1: -101.5dBm (10M)LTE B2: -101dBm (10M)LTE B3: -101.5dBm (10M)LTE B4: -101dBm (10M)LTE B5: -101dBm (10M)LTE B7: -99.5dBm (10M)LTE B8: -101dBm (10M)LTE B12: -101dBm (10M)LTE B13: -100dBm (10M)LTE B14: -99dBm (10M)LTE B18: -101.7dBm (10M)LTE B19: -101.4dBm (10M)LTE B20: -102.5dB (10M)LTE B26: -101.5dBm (10M)LTE B28: -102dBm (10M)LTE B38: -100dBm (10M)LTE B40: -100dBm (10M)LTE B41: -99dBm (10M)LTE B66: -99dBm (10M)LTE B71: -100dBm (10M)WCDMA B1: -110dBmWCDMA B2: -110dBmWCDMA B4: -110dBmWCDMA B5: -110.5dBmWCDMA B6: -110.5dBmWCDMA B8: -110.5dBmWCDMA B19: -110.5dBmGSM850: -109dBmEGSM900: -109dBmDCS1800: -109dBmPCS1900: -109dBmLTE features Support up to non-CA CAT 4. Support 1.4 to 20MHz RF bandwidth. Support MIMO in DL direction FDD. Max 50Mbps (UL), 150Mbps (DL) TDD. Max 35Mbps (UL), 130Mbps (DL)UMTS  features Supports 3GPP R8 DC-HSPA+ Supports 16-QAM, 64-QAM and QPSK modulation 3GPP R6 Cat 6 HSUPA: Max 5.76Mbps (UL) 3GPP R8 Cat 24 DC-HSPA+: Max 42Mbps (DL)GSM/GPRS   featuresR99:CSD: 9.6kbps, 14.4kbps GPRS: Support GPRS multi-slot class 12 (12 by default) Coding scheme: CS-1, CS-2, CS-3 and CS-4 Maximum of four Rx time slots per frameAntennas 2* 2 MIMO 4G LTE external directional antennas, with 50 Ω impedance. 1* GPS antenna.(Optional).GNSS/GPS (Optional)GNSS features Gen8C Lite of Qualcomm Protocol: NMEA 0183SIM card featureSIM  cardSupports 1* SIM slots, 1.8V / 3V . Or 1* eSIM card. ( Optional )Hardware featureCPUMTK7628NN,575M/580MHz ,MIPS 24KEcMEMORYFLASH 16MByte,  DDR2  128MByteHardware interface1 * WAN / 2 * LAN 10/100Mbps fast Ethernet ports.  1*RS485 or RS232 port.WatchdogBuilt-in watchdog feature.Key buttonResetProtection  levelEthernet port , Contact electric shock, +/-4KV, air discharge: +/-8KV.LED status indicatorPWR ,SYS, Net, WAN, LAN,WLANStandard Power DC input. DC 12V/1A,Power Supplypower  supply input.  DC +12/1.5A~36V/0.5APeak currentMax current. 0.4A @18VWorking currentMax
