IP Streamer 8 HDMI Input Chassis Rack Digital Modulator IP Encoder

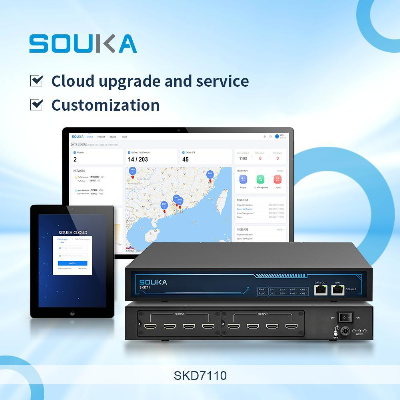

  Detailed PhotosSKD71 R Series with RF Output It is a streamer. It is a digital modulator and IP modulator.  SKD71 Series with RF output: Free combination of (maxmum 8 input ports + 1 IP input).  Input ports can be HDMI,DVB-S/S2,PCMCIA,DVB-C, DVB-T/T2 ,SDI, 4K. It supports 4 or 8 output frequencies.  There are more free combinations for options, please contact us to get the price.              Various mounting methods: Desktop, Rack-mounted and wall-mounted  SKD71 series is a small digital or IP TV front-end business centralized processing platform products, flexible installation, can achieve cabinet, wall hanging, desktop installation, users can choose the relevant board card according to the project needs to form the optimal configuration scheme, which not only meets the function, but also saves costs.It can operate device parameter configuration through local or cloud network, the WEB page is beautiful and easy to understand, the operation is simple, with intelligent functions such as parameter batch import, export and abnormal reminder.It is a digital or IP TV front-end signal comprehensive processing equipment which can be any combination of 2 boards to realize functional configuration customization, high integration, high cost performance.Features:One box,we have all you want.Supports 4 or 8 HD/SDI input with H.264 encodingSupports 4 or 8 DVB-S/S2 input and BISS functionSupports 1 or 2 DVB-C OR DVB-T/T2inputSupports 1 or 2 UHD 4K inputSupports 2 or 4 PCMCIA inputSupports input and output protocols in UDP and RTPSupports SPTS and MPTS IP inputSupports 256 IP address input in 1 Gigabit portOutput frequencies in 4/8/16 with DVB-C(J.83A/B), DVB-T/T2,DTMB,ATSC or ISDB (Optional)Output IP stream in MPTS with 8 IP address or SPTS with 512 IP addressNewly designed Ul interface, comfortable and easy to useVarious mounting methods: Desktop, Rack-mounted and wall-mounted   SpecificationSKD71 R Series with RF Output Chasis performance parameterSKD7100M Chasis performance parameterSize318(length)*260(width)*44(height)mmMounting methods1U19 chasis, support Desktop, Rack-mounted and wall-mounted  Working temperature and humidity-10ºC-45ºC,40%-70%Storage temperature and humidity-40ºC-70ºC,40%-95%Power supply parametersupply voltageDC12V maximum current7000mAInput ports parameters1.Support 4 or 8 HD/SDI input with H.264 encoding                                                                2. support 4 or 8 DVB-S/S2 input and BISS function                                                            3. support 1 or 2 DVB-C or DVB-T/T2 input, 1 DVB-C or DVB-T/T2 input port with 4 transponders.                                             4. support 1 or 2 UHD 4K input .                                                                      5. support 2 or 4 PCMCIA input                                                                          6. Free combination of two different input ports, such as: 4 HD + 4 SDI, 4 DVBS/S2 + 4 HD, 1 UHD +4 HDMI, ...etc.                                                                                    IP input parametersIP input1 gigabit RJ45  input format  1. support input and output protocols in UDP and RTP                                                         2. support SPTS and MPTS IP input                                                   3. support 256 IP address input in 1 Gigabit port  RF output parametersOutput1 RF Output and 1 -20dB test port output Output standardDVBC(J83A/B/C),DVBT/T2,DTMB,ATSC(optional) RF frequency range50-870MHz Output Level≥105dBuV(0-20dB adjustment range) Out-band Rejection≥60dB output impedance75 Output frequenciesOutput frequencies in 4 / 8 / 16 with DVB-C (J.83A/B), DVB-T/T2, DTMB, ATSC or ISDB-T (Optional)  J.83B constellation64QAM,256QAM  bandwidth6MHz  MER≥40dB    symbol rateQAM64(5.056941Msps),QAM256(5.360537Msps)modulation standardAnnex BDVB-T modulation standardDVB-T COFDMbandwidth6M/7M/8MModulation constellationQPSK,16QAM,64QAMcode rate1/2,2/3,3/4,5/6,7/8guard interval1/32,1/16,1/8,1/4transmission mode2K,4K,8KATSCconstellation8VSBsymbol rate5-6.900Mspsmodulation standardAnnex A/CDTMBbandwidth8MconstellationQAM16,QAM32,64QAM,QAM4_NRinterleaver modelINTLV_NONE,NTLV 240,INTLV 720FEC code rate0.4,0.6,0.8Subcarrier modeMulti-carrier,Single-carrierFrame head mode420,595,945Frame header phase changeVariableDVBCbandwidth6M/7M/8Mconstellation64QAM,256QAMsymbol rate3600-6960(ks/s)  Company Profile    Dingshengwei Electronics Co.,Ltd (DSW) is dedicated to design, manufacture and sales of CATV analog,digital and IPTV modulator with our brand name SOUKA.DSW obtained ISO9001:2008 certificate authorized by CQC. We have 100 in-house skillful workers, which ensures the punctual delivery date.    And a professional engineer team made up of 10 senior RF engineers and 6 IT engineers to fulfil precise management over all projects honored by our customers.As one of the most reliable suppliers in this field, we continually spare no efforts in developing DSW into a
