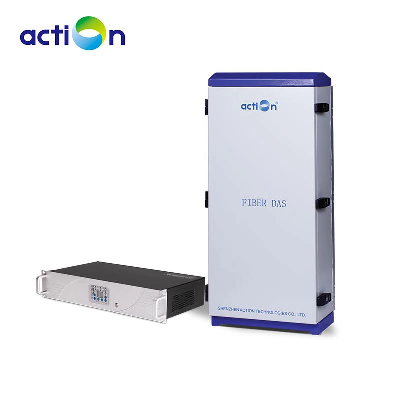

Quad Band Fiber Active Das - Multi Distributed Antenna System

With the development of mobile communication technology, more and more new communication technologies (such as 5G) are being used nowadays. As a result, telecom operators have to run multiple systems simultaneously and provide multi-system services (2G/3G/4G/5G) in one coverage area, resulting in the difficulty of installation and transmission of equipments. For the above mentioned reasons, Multi-Band Fiber DAS is designed to solve the problems of weak mobile signal in the place that is far away from the BTS and has fiber optic cable network underground. The system consists of two parts: Master Unit(MU) and Remote Unit(RU). The MU captures the BTS signal via direct coupler close to BTS, then converts it into optic signal and transmits the amplified signal to the RU via fiber optic cable. The RU will reconvert the optic signal into RF signal and provide the signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction. Feature: 1. Aluminum-Alloy casing with IP65 protection for high resistance to dust, water and corrosion. 2. Supports 2G/3G/4G/5G, supports multi-bands and multi-operators 3. Adopting WDM module to realize long-distance transmission. 4. Tx/Rx control and alarm messages to be transmitted via one fiber optic cable. 5. One MU supporting up to 2 RUs to maximize utilization of fiber optic cable. 6. USB port provides a link to a notebook for local supervision or IP Based NMS (Network Management System) that can remotely supervise Repeater's working status and download operational parameters to the Repeater Via Etherne To expand signal coverage or fill signal blind area where signal is weak or unavailable. Outdoor: Airports, tourism regions, golf courses,tunnels,factories,mining districts,villages,... Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots,... Specification:     ItemsMURUSpecificationsFrequency BandLTE1800&UMTS/LTE2100<E2600&5GNR TDD-3.5GHzWorking FrequencyUplink1710~1785&1920~1980&2500~2570&3400~3600MHzDownlink1805~1880&2110~2170&2620~2690&3400~3600MHzTransmission Distance≤ 10kmMaximum Input Power(Non-Destructive)10dBmMaximum RF Output PowerUplink:-5±2 per BandDownlink:43±2dBm per Band(The Output Power of 5GNR is 40dBm)System Gain50±3dB(MU+RU)Manual Adjustable Gain Range 0~30dB/Step 1dBAGC≥10dBVSWR≤ 1.5Spurious Emission9kHz~1GHz: ≤ -36dBm1GHz~12.75GHz: ≤ -30dBmEVM≤ 8%@4G, ≤ 4.5%@5GNoise Figure@1RU Connection≤ 6dBSystem Delay≤ 5μSecI/O Impedance50ΩFiber Connector4XFC/APC1XLC/UPCRF Connector4XN-Female1XN-FemaleOptical Output Power0±3dBm(1310nm) / -3±3dBm(1550nm)Fiber Type/NumberSingle ModeOptical Receiver Sensitivity≥ -15dBmPower Supply AC220V, 50/60HzTemperature Range-25°C ~ +55°CHumidity≤ 95% (Non Condensing)ApplicationIndoor(IP30)Indoor & Outdoor(IP65)Dimensions485mm x 350mm x 90mm500mm x 440mm x 235mmWeight≤10kg≤50kgMounting19" Rack MountedWall or Pole Mounted   Q1. Could I get a sample before bulk order? Yes, we offer the sample for all models but charged. Q2. What should I do if I don't know about frequency in my country? Please feel free to contact us with your inquiry, we will find the frequency you need and address your problems.  Q3. Do you accept OEM / ODM order? Yes, we can customize the brand logo, colors, and frequencies. Q4. Delivery & Shipment Date: 3-30 days Q5. Customized Frequency: We can customize Single/Double/Triple/Quand/Penta Band for cellphone signal like 2G/3G/4G(GSM/CDMA/DCS/PCS/WCDMA/LTE, etc,) Q6. Output Power & Coverage Areas: 20dBm: 500-1500m² 23dBm: 1500-2500m² 25dBm: 2500-4000m² 27dBm: 3000-5000m² 30dBm: 5000-8000m² Coverage is related to local signal strength, please contact us with your local condition, we can offer the best solution.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
