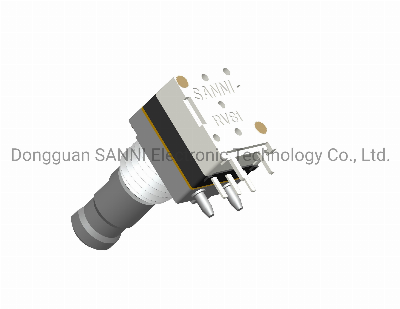

Re8141m Push Switch 18 Detent 8mm Metal Shaft Sealed Rotary Encoder

FeaturesRoHS compliantSeal typeSmall volumeStructural diversificationHigh qualityApplicationIndeal for volume control and car amplifier,walkie-talkie.Switch performancecircuit type: PushRated Power: 0.1A 5V DCSwitching torque: 500gf.cm maxSwitching travel: 0.5±0.3mmOperating life without load: 100,000cycles 100mΩ  maxOperating life with load: as rating 100,000cycles 200mΩ  maxInitial contact resistance: 100mΩ maxInsulation resistance : 100mΩ max min. 250V DCVoltage proof: 300V AC for 1 minuteMechanical characteristicsTotal rotational angel: Incremental:360°  Rotational torque: 150~350gf.cm Rotational stopper strength :3Kgf.minShaft push-pull strength: 8Kgf.maxShaft wobble: Max:0.6*L/20mm P-P max.Electrical characteristicsRatings power: 0.025WInsulation resistance : 100mΩ min.250V DCVoltage proof: 300V AC for 1 minute Durability   Operating life without load: 20,000 cycles 100mΩ max.                                 Environmental performanceCold: -40ºC±2ºC for 96hDry heat: 85ºC±2ºC for 96hDamp heat: 40±2ºC, 90 to 95%RH for 96H/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
