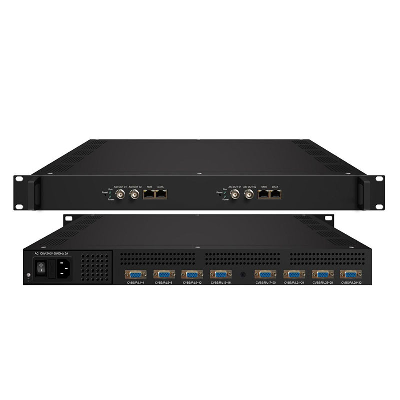

Product DescriptionSOFTEL SFT3226SA multi-channel encoder is our newest professional SD audio & video encoding and multiplexing device with powerful functionality. It adopts the slot structure with one device supporting maximum 2 SFT3226SA modules. Each module can support 16 channels and work standalone. It is equipped with 16/32 CVBS channels input. It can multiplex the 16/32 encoded TS to generate a MPTS and 16/32 SPTS output through GE output port and one MPTS output through 2 ASI output ports. In conclusion, its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc. Features* 16/32×CVBS video inputswith MPEG4 AVC/H.264 Video encoding* Supports PAL(PAL-B,D,G,H,I) and NTSC (NTSC-M,J) SD video formats* Support MPEG1 Layer IIAudio encoding and support audio gain adjustment* Support 1 MPTS out through 2 ASI output ports* Support IP output over UDP and RTP* Support Null PKT Filter(only for MPTS, SPTS output without Null PKT)* Support Logo, Caption, QRcode insertion* Real-time effective encoding output bit-rate monitoring* Controlvia web management, and easy updates via web* Modular design,1U chassis support up to 2 modulesProduct Parameters Input 16/32 CVBS inputs , DB15-To-RCA interface Video Resolution 720×576i (PAL-B,D,G,H,I), 720×480i (NTSC-M,J) Encoding MPEG4 AVC/H.264(HP/MP/BP) Bit-rate 1Mbps~5Mbps each channel Rate Control CBR/VBR GOP Structure IPP (P frame is adjustable) Aspect Ratio 4:3; 16:9 Audio Encoding MPEG-1 Layer 2 Sampling rate 48KHz Resolution 24-bit Audio Gain 0-255 adjustable Bit-rate 64/128/192/224/256/320/384Kbps each channel Stream output IP (1*MPTS and 16/32*SPTS) output over UDP and RTP, 1000 Base-T Ethernet interface (Multicast and unicast) 1 MPTS output through 2 ASI output ports (one for back up), BNC interface System function Network management (WEB) English language Ethernet software upgrade Miscellaneous Dimension(W×L×H) 482mm×328mm×44mm Environment 0~45ºC(work);-20~80ºC(Storage) Power requirements AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz Order Information Version I VersionII 16 CVBS Input ○ 32 CVBS Input ○You May Also Like1550nm Fiber optic transmitter •The operating bandwidth is up to 47~862MHz (47~1080MHz).•CNR ≥ 53dB and excellent CTB, CSO index.•SBS: 13~18dBm adjustable.•AGC/MGC mode is optional at the spot. OMI can be optimized at the spot.•Advanced SNMP network management function.•1+1 power supply backup, switch automatically. ADSS outdoor fiber optic cablesStranded layer of aramid yarns are applied over the inner sheath as strength member Outer sheath: PE or AT material ; Inner sheath:PE Special communication glass fiber FTTH Gpon OLTDual Power Supply1.25Gbps Uplink Bandwidth; 2.5Gbps Downlink BandwidthCompatible with other mainstream ONU, like Huawei, zte Packaging & ShippingCompany Profile/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
