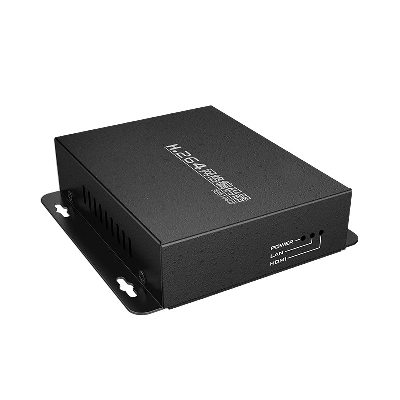

H.264 1080P HDMI video encoder for broadcastingProduct Features: The main and sub-group streams are more reliableHDMI high-definition 1920x1080pSupport H.264 high efficient video coding, clearer image, lower occupied bandwidthPure hardware coding, more stable and reliableSupport subtitles, logos, etc.Live broadcast platform, main and sub-group push streamCompatible with various live broadcast platformsEasy to operate, no settings requiredSupport multiple resolution custom settingsMetal shell, fast heat dissipation Technical Parameters: SpecificationsparameterAudio and video inputVideo input1 port HDMI Audio input1 port HDMI built-in audio Video codingCoding typeH.264 Coded frame rate5-60 adjustable Key frame interval5-300 adjustable Bit rate (kbit)32-32000 adjustable Coding resolution1920x1080/ 1680x1056/ 1280x720/1024x576/ 850x480/ 720x576/ 720x540/ 720x480/ 720x404/ 704x576/ 640x480/ 640x360/ 608x448/ 544x480/ 480x480/ 480x384/ 480x360/ 480x332/ 480x272/ 480x270/ 400x320/ 400x224/ 352x480/ 352x352/ 352x228/ 320x256/ 320x240/ 320x180/ 240x180/ 176x144/ Same as input resolution Code stream controlCBR/VBR optional StreamSupport RTMP/ RTSP/ HTTP FLV/ HLS/ UDP multicast/ RTB multicastAudio codingCoded sampling rate44100/48000 optional Coding methodAAC+/ AAC++/MP3/ MP2/AC3 optional Coding bit rateAAC:48000-320000adjustable / AAC+:2400-48000adjustable / AAC++:12000-320000 adjustable / MP3:64000-320000adjustable / MP2:64000-320000adjustable / AC3:40000-640000adjustable Digital volume-50 ~ 50 adjustable RTSP stream uses G711A encodingDisable/ Enable optionalOSDTransparency0-128 adjustable TypeText/ picture/ scrolling text Area4 areas available X coordinate0-1920 Y coordinate0-1080 LOGO4 logos can be uploaded for selection Font size8-72 Background colorTransparent/ white/ black Font colorRGB color is optionalGeneral useNetworkSupport Gigabit networks Configuration managementConfiguration management via the WEB ONVIFSupport ONVIF search browsing videos PowerDC 12V, 1A Power consumption4W Operating temperature-20ºC - 60ºC Operating humidity
