Integrated Slip Ring With Encoder

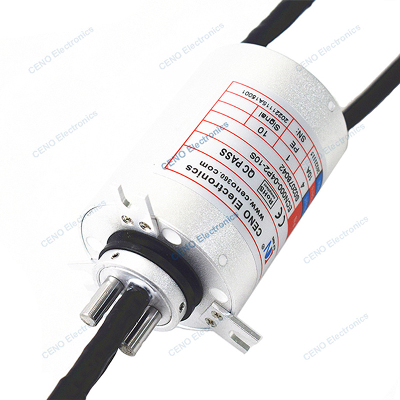

Product DescriptionECN000-04P2-10S is an integrated slip ring with Encoder from CENO electronics, there are 4 circuits for 10A electric power, 10 channels for 2A Encoder signals. And most of the specification can be customized and optional as different applications. Encoder is a device that complies and converts signals or data into signals that can be communicated, transmitted and stored. Due to the scientific and reasonable structure, convenient on-sit maintenance and commissioning, and stable performance, it's wildly used in engineering machinery, ship cranes etc.AdvantagesPower integrate Encoder signalFlange installationBlind through boreLong service lifeApplicationsWind power equipmentDisplay equipmentPackaging machineMedical machineRadar systemOptionalThrough hole sizeCurrent rating and circuits noSignal typeIP protection gradeContacts material    Product ParametersECN000-04P2-10SSpecification Current & Circuits4circuits*10A, 1*10A(PE), 10circuits*2A(Encoder)Rating Voltage0~380 VAC/VDCDielectric strength≥1000VAC@50Hz; ≥300VAC@50HzIsolation resistance≥1000MΩ@500VDC; ≥100MQ@300VDC;Electrical noise≤70mΩ (50rpm)Lead wire lengthRotor : 300mmStator : 300mmOperating speed0~100rpmContact materialPrecious metalHousing materialAluminum alloyWorking temperature-20°C~+80°CWorking humidity60%IP protection gradeIP54Lead wire sizeAWG17# Tin coated Teflon®UL10 core twisted shield wireInstallation wayBolt fixed on the rotation equipment  Outline drawing/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
