High Speed Railway Locomotive Speed Sensor Encoder Ts5840n Ts5841n

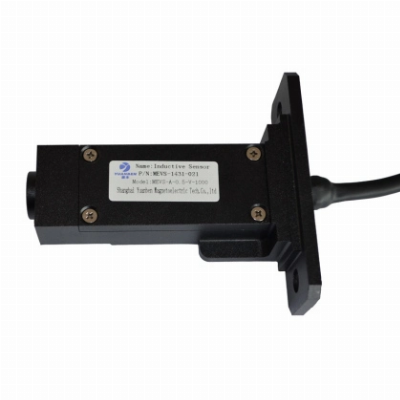

High-speed Railway Locomotive Speed Sensor EncoderDescription Thw high-speed railway locomotive speed encoder MEVS-1431-021, is up to the international performance standard. Can replace the Japanese Mochuan speed sensor TS5840N series and TS5841N series speed sensor (also known as speed encoder).Using magnetic induction principle, CNC integrated processing of solid alloy shell, Anti-interference, surge, anti-vibration impact, superior performance,resistant to high and low temperature changes, dust, water, oil, protection class IP67,With self-repair speed signal function, stable and reliable performance.Products can be applied to CSR production CRH2 high-speed railway vehicles and the North car production CRH3 high-speed railway vehicles and the North-South car production of various models of heavy-duty trunk locomotives and subway vehicles.Passive single-channel, two-channel, active single-channel, two-channel, four types available. According to customer requirements, we can design a variety of external structure, electrical parameters, a variety of cable connector specifications optional.And provide a sound solution.Features 2-phase pulse outputPower supply voltage 12 VThe minimum start speed is 0 rpmProtection class: IP67Working temperature: -20 - 85ºCHigh precision: 90 ° ± 5 °Long life: more than 120000hVibration and corrosion resistancenApplication:High-speed rail vehicles, EMU vehicles, trunk locomotives, subway vehicles, light rail vehicles, monorail vehicles, power shovel mining equipment and other applications in large motor power equipment, large and medium-sized three-phase asynchronous motor field.Technical ParametersProduct CodeMEVS-1431-021Product numberMEVS-A-0.5-V-1650   Power  Input voltageDC 12VCurrent45mA maxOutputManner2-phase pulsePhase difference90±18°VoltageH=8V min  L=1V minStatusRotating speedfrom 0 rpmInsulation resistance100M ohm min by DC500VDielectric strengthAC2,000V for 1 minuteOperating temperature range-20----85ºCSave the temperature range-25----90ºCTemperature range30--100%RHLifeOver 120,000 hoursPressure resistanceJIS E 4031Resistant to stamping capacityJIS C 0912Photos  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
