Min 70dB EMI/Rfi Shielded Cabinets & Enclosures

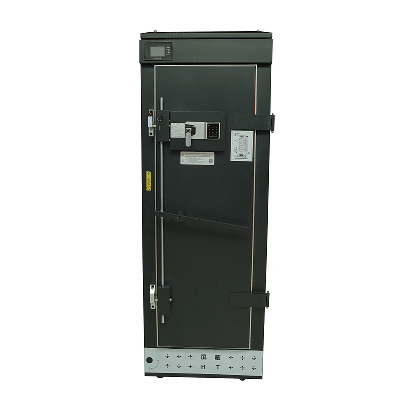

  Product DescriptionMin 70dB EMI/RFI Shielded Cabinets & EnclosuresEMI Shielded Cabinet HTYZ-PB7735 IntroductionShielded cabinets are portable electromagnetic shielding designed and manufactured according to the actual needs of users The cabinet can effectively prevent the interference of the external harsh electromagnetic environment on the data switch, ensure the stable work of the information data transmission and exchange system, and prevent the equipment data information leakage and the risk of being stolen by others.  Product ParametersDetail specification of our EMC cabinets are as follows: Height(Rack Units)16U,20U,27U,35U,37U,42URack Size19"Optical Fiber Waveguides5Network Cable Waveguides10Fans8Shelves1-3 (position adjustable)PDUone 6-bit 10A flame-retardantScrews20 setsFront DoorCombination LockPackaging Size(mm)1000*600*800-2200*700*1000Door TypeSealedGross Weight120-226kgOther specificationsModel No.Size in mm (H*W*D)DescriptionPB77161000*700*700EMI Shielded Cabinet - Metal thicknesses are 2.0mm for vertical column ,1.5mm for body plate.8 fans, 1 shelf,5 optical fiber waveguides, 10 network cable waveguides, gross weight 120kg, packing volume 0.96m³PB77201200*700*700EMI Shielded Cabinet - Metal thicknesses are 2.0mm for vertical column ,1.5mm for body plate.8 fans, 1 shelf,5 optical fiber waveguides, 10 network cable waveguides, gross weight 130kg, packing volume 1.12m³PB77271600*700*700EMI Shielded Cabinet - Metal thicknesses are 2.0mm for vertical column ,1.5mm for body plate.8 fans, 2 shelves,5 optical fiber waveguides, 10 network cable waveguides, gross weight 150kg, packing volume 1.45m³PB77351800*700*700EMI Shielded Cabinet - Metal thicknesses are 2.0mm for vertical column ,1.5mm for body plate.8 fans, 2 shelves,5 optical fiber waveguides, 10 network cable waveguides, gross weight 160kg, packing volume 1.62m³PB77372000*700*700EMI Shielded Cabinet - Metal thicknesses are 2.0mm for vertical column ,1.5mm for body plate.8 fans, 3 shelves,5 optical fiber waveguides, 10 network cable waveguides, gross weight 170kg, packing volume 1.78m³PB77422200*700*700EMI Shielded Cabinet - Metal thicknesses are 2.0mm for vertical column ,1.5mm for body plate.8 fans, 3 shelves,5 optical fiber waveguides, 10 network cable waveguides, gross weight 180kg, packing volume 1.95m³PB70161000*700*1000EMI Shielded Cabinet - Metal thicknesses are 2.0mm for vertical column ,1.5mm for body plate.8 fans, 1 shelf,5 optical fiber waveguides, 10 network cable waveguides, gross weight 150kg, packing volume 1.25m³PB70201200*700*1000EMI Shielded Cabinet - Metal thicknesses are 2.0mm for vertical column ,1.5mm for body plate.8 fans, 1 shelf,5 optical fiber waveguides, 10 network cable waveguides, gross weight 163kg, packing volume 1.47m³PB70271600*700*1000EMI Shielded Cabinet - Metal thicknesses are 2.0mm for vertical column ,1.5mm for body plate.8 fans, 2 shelves,5 optical fiber waveguides, 10 network cable waveguides, gross weight 188kg, packing volume 1.9m³PB70351800*700*1000EMI Shielded Cabinet - Metal thicknesses are 2.0mm for vertical column ,1.5mm for body plate.8 fans, 2 shelves,5 optical fiber waveguides, 10 network cable waveguides, gross weight 200kg, packing volume 2.11m³PB70372000*700*1000EMI Shielded Cabinet - Metal thicknesses are 2.0mm for vertical column ,1.5mm for body plate.8 fans, 3 shelves,5 optical fiber waveguides, 10 network cable waveguides, gross weight 213kg, packing volume 2.33m³PB70422200*700*1000EMI Shielded Cabinet - Metal thicknesses are 2.0mm for vertical column ,1.5mm for body plate.8 fans, 3 shelves,5 optical fiber waveguides, 10 network cable waveguides, gross weight 226kg, packing volume 2.54m³Fingerprint combination lock (optional accessory) Optional accessories should be bought together with cabinet order. Could not sell separately.Temperature, humidity and electromagnetic monitoring unit (optional) Optional accessories should be bought together with cabinet order. Could not sell separately.Network cable waveguidesOD12 ID8 Length80Optional accessories should be bought together with cabinet order. Could not sell separately.Optical fiber waveguidesOD16 ID13 Length150Optional accessories should be bought together with cabinet order. Could not sell separately.Copper meshWidth 914mm,Unit:mOptional accessories should be bought together with cabinet order. Could not sell separately.  Detailed Photos Strong Heat DissipationA honeycomb ventilation waveguide window with a specification of 300mm×300mm is installed on the top and bottom of the cabinet, and a total of 8 aluminum alloy miniature axial flow fans are equipped, with a single exhaust air volume of 2.58m3/min, effectively realizing the ventilation of the cabinet up and down. While improving the port shielding effectiveness, it also meets the heat dissipation requirements of the equipment inside the cabinet. Monitoring alarm (optional)Effective display of device temperature, humidity, and electromagnetic detectionShielded DoorThe design of th
