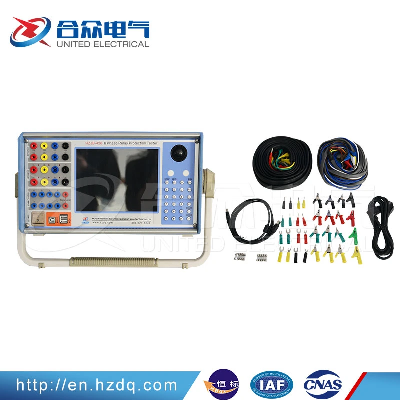

Relay Tester Relaying Protection Testing Equipment Secondary Injection Set

Product Description:HZJB Series microcomputer relay protection tester is a new small microcomputer relay protection testing instrument, manufactured referencing DL/T624-199 "microcomputer relay protection test device technology", listening to the views of users, summarizing the advantages and disadvantages of the same domestic products, using modern advanced microelectronic technology and device.Product Features:1.Satisfy all on-site test requirements.2.Technical indicators fully meet the DL/T624-1997 "microcomputer relay protection test device technology" standard issued by the Ministry of electric power.3.This device Windows XP system with recovery function, avoid systemcrash caused by the illegal shutdown or misuse.4.Main control board uses DSF+FPGA structure, 16 bit DAC output, the basic wave can produce weekly 2000 points of high density sine wave, greatly improve the waveform quality, and improve the accuracy of the test instrument.5.The classic Windows XP operation interface, the man-machine interface is friendly, the operation is simple and quick.6.Amplifier using high fidelity linear power amplifier, both to ensure the accuracy of the small current, but also to ensure the stability of the large current.7.With GPS synchronous test function. The device can be built in GPS synchronous card, connected with the PC machine through the RS232 interface, to achieve synchronous test switch of two test sets in different places.Product Parameters: ModelParametersHZJB-421HZJB-426AC Current3 x (0~40A/phase)6 x (0~30A/phase)DC Current3 x (0~±10A/phase)6 x (0~±10A/phase)AC Voltage4 x (0~120V/phase)6 x (0~125V/phase)DC Voltage4 x (0~±160V/phase)6 x (0~±150V/phase)Accuracy0.2%0.5%Switch Quantity8 pairs of input, 4 pairs of outputAuxiliary OutputAuxiliary DC source: 220VDC/110VDC automatically output simultaneously, can be used to  protect power supply, without the need to set and adjust the software. Power: single channel not less than 110VA.RemarkCan equip with a notebook computer to operateWindows XP system, embedded industrial control computerCompany ProfileWuhan Hezhong Electric Equipment Manufacture Co., Ltd is a high-tech enterprise professionally engaged in R & D, manufacture and marketing of power testing products, instruments, power industry automation systems for 20 years.We export completed set to Korea, Singapore, Vietnam, India, Ecuador, Paraguay, Pakistan, Philippines, Russia, Italy, Austria, Portugal, Chile such as PD test system, impulse voltage generator, temperature rising test system, transformer comprehensive test system, cable fault detect system and varies of instruments for transformer, circuit breaker, switchgear, lightning arrestor, insulator, cable, battery,SF6 gas and so on. Comprtitive ProductsCertificationsCustomer VisitOn-site ServicePackage and Delivery/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
