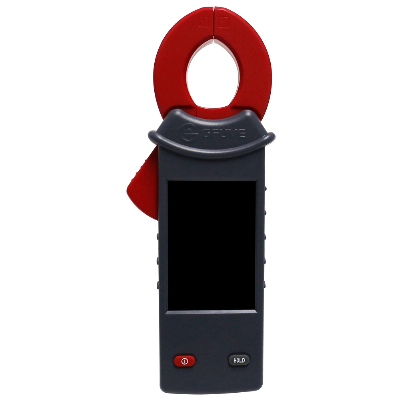

Gfuve 600V 120A on Site Single Phase Electricity Meter Accuracy Tester

GF112D GFUVE ON SITE SINGLE PHASE ELECTRICITY METER ACCURACY TESTERGF112D is a single-phase handheld electronic meter test unit in accuracy class 0.1or 0.2, used for testing single phase electricity meters error on site. Wide measurement range from 1mA to 120A and 0 to 600V, and also can be used to test alternating current parameters - voltage, current, active power, reactive power, apparent power, harmonics, phase angle, power factor, frequency, energy etc.FunctionsRotary field indication;Vector diagram display;External thermal-printer;4-quadrant measurement;Display of vector diagram;Energy meter counters testing;Testing of energy and power registers;Testing of 1P2W electricity meter error;Testing of 1P2W inductive energy meter error;Testing of 1P2W mechanical energy meter error;Oscilloscope function display current & current wave;Frequency, phase angle and power factor measurement;Harmonic analysis for voltage and current up to the 63th harmonics;Power and energy measurement of active, reactive and apparent energy;FeaturesAccuracy class 0.1;Smart optical sampler;3.5 inch color touch TFT LCD;Easy and user friendly operation;Lithium batteries can be replaced;Storage 5000 groups calibrate data;The best light weight meter test set;With PC software, export test report;Automatic compensation for current clamp;Unique long-term and temperature stability;ith bluetooth & USB communication port;Wide measuring range 0 -600V /0.001-120A;The Li-battery can work 48 hours continuously;One screen displays all the measured parameters;The meter and current clamp have Integration design;PARAMETERSElectrical parametersAccuracy class0.1% or 0.2%Active power measurement accuracy0.1%, 0.2%Energy measurement accuracy0.1%, 0.2%Power supplyAAA type, Li rechargeable battery, 2700mAh, 3.6Vit can work 48 hours continuouslyWarming-up time
