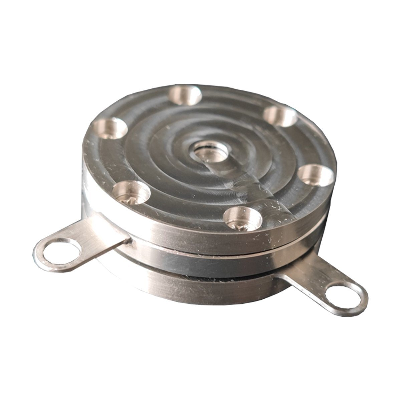

in-Situ Raman Test Cell for Lithium Batteries

Product introduction:The in-situ Raman measurement cell of lithium battery is mainly used to collect Raman spectrum data of materials in the lithium ion reaction system, and can study the electrode structure in the chemical reaction process of lithium battery electrode materials.Product parameters and characteristics:1.Material of tank body: 316L stainless steel/TA2/3003A1;2.Temperature: the reaction tank is not equipped with heating and cooling system, and it is recommended to use at room temperature;3.Pressure: normal pressure;4.Sample type: all samples of lithium battery materials, positive and negative electrode diameter Φ ≤ 16mm;5.Diaphragm diameter: Φ ≤ 20mm;6.Focal length: < 8mm, meeting the testing requirements of mainstream Raman spectrometers in the market, and can be customized according to needs;7.Window: quartz window, diameter ≥ 6mm, can be customized according to customer requirements.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
