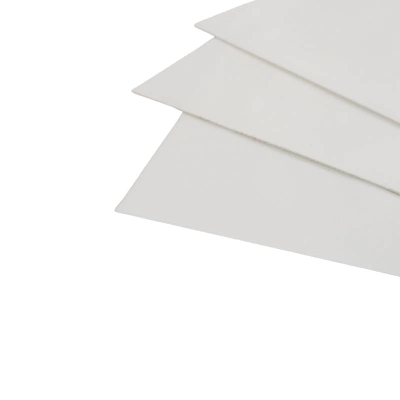

Electrically Insulating Pad Thermally Interface Materials Silicone Conductive Thermal Pad

 High Quality 1.5W Heat Dissipation Silicone Thermal Conductive PadProduct DescriptionVS-GP1501 silicone thermal pads achieve low interfacial thermal resistance at relatively low pressures, with excellent thermal conductivity, thermal stability, flexibility and resilience. Also, it is safe and reliable to use. Applied between the power device and the cooling aluminum sheet or the machine shell, the air can be effectively excluded to achieve good thermal conductivity and filling effect.Detailed Photos Product ParametersFeatures   ♦  Continuous operating temperature:-40ºC~+200ºC   ♦  High thermal conductivity, low thermal resistance   ♦  Excellent surface wettability and resilience   ♦  Excellent flame retardancy   ♦  Multiple thickness selection, wide application range   ♦  Environmental protection standard: RoHS, REACHTechnical PerformanceItemTypical DataTest MethodStandard colorGreyVisualDensity (g/cm3)1.9ASTM D792Thickness (mm)0.5~5.0ASTM D374Hardness (Shore OO)25~70GB/T 531.1-2008Tensile Strength(KPa)≥100GB/T 528-2009Elongation at break (%) ≥50GB/T 528-2009Thermal conductivity (W/m·k)1.5ASTM D5470Flame Retardancy RatingV-0UL94Dielectric Breakdown Voltage (kV)>7KV/mmASTM D149Volume resistivity≥1.0×10 14 Ω·ASTM D257DimensionCustomizable, the sizes & packages are available on request.   Company ProfileSuzhou Volsun Electronics Technology Co.,Ltd. was founded in 2006. We keep focusing on the R&D, production and sales in insulation, sealing & protection solutions for over 17 years.Quality is our culture. Volsun has a modern quality management system, which has passed a series of quality system certification such as IATF16949, ISO9001 etc. And we have gained some advanced titles such as Jiangsu famous scientific and technical corporation, China new high-tech enterprise etc. have independent intellectual property rights, 88 patents and 97 product certifications.Up to now, Volsun cooperated with customers from 88 countries, we offer suitable sealing, waterproof solutions for some well-know enterprises in communication,Automobile, Power industry etc.Certifications    Packaging & Shipping /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
