Flow Meter Deminstrtion Fluid Mechnics Lab Equipment Teaching Equipment

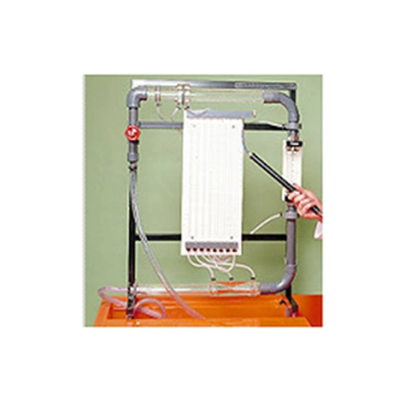

ZF1127A Flow Meter Deminstrtion Fluid Mechnics Lab Equipment Teaching EquipmentTest stand for flow meters which can  be performed on Hydraulic Bench  Self-contained experimental set-up on laboratory trolley Closed water circuit with pump 60LPM and supply tank 120Ltr Venturi meter, variable area meter and orifice plate with control valvePressure tappings to measure head loss from each meterSupplied with manometer board with eight tubesQuick release fitting for easy connection to hydraulics benchEducational Software available as an optionThis accessory is designed to introduce students to three basic types of flow meter. DEMONSTRATION CAPABILITIES·         Directly comparing flow measurement using a Venturi meter, variable area meter and orifice plate Calibrating each flow meter using the volumetric  measuring tank of the bench Comparing pressure drops across each deviceTECHNICAL DETAILManometer range: 0 to 440mmNumber of manometer tubes: 8Orifice plate diameter: 20mmVariable area meter: 2 to 20 litres/minVenturi dimensions: Throat diameter 15mm Upstream pipe diameter 31.75mm Upstream taper 210 inclusive Downstream taper 140 inclusiveBrand: ShouldshineModel:ZF1127A(Educational Equipment Teaching Equipment Vocational Training Equipment For engineering university, higher education college, polytechnics, technical institute, engineering training center, technical secondary school.) Product Details and Warranty We supply suitable spare pats according to experiment requirement, our products take aluminum structure, A4 paper dimension aluminum and plastic hanging box structure. We supply 3 years warranty time. Please se photo for foreign sales department and photo for spare parts.   Packaging & Delivery Package details: plastic film+ plastic foam + plywood box with pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton. Arrange delivery within 45 days upon receipt of payment. Please see below photo for detailed package.   Company Information We supply professional educational training equipment and technical teaching equipment, which has been widely applied in Engineering Universities, Polytechnics, Technical Institute, Vocational Schools as well as Industry workforce Development Programs and Training Center. Our products allow students to learn and experiment through valuable hands-on experience, and the technology covered by our training equipment provides knowledge, experiments and didactic skills development that are of critical importance to today's and tomorrow's careers.  Service We supply supply7*24 hours service, customer design service, OEM service, buyer label service. With professional engineers team and sales team, we assure you good product quality. Certificate Our products takes ISO9001 product management system. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
