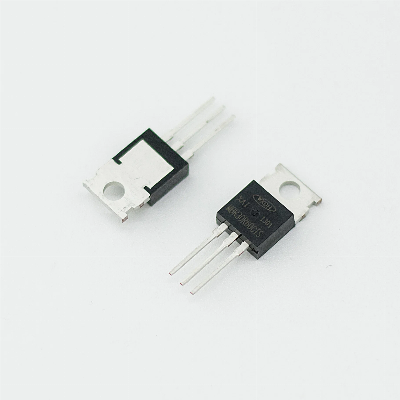

180A 40V N-Channel Enhancement Mode Power Mosfet DTG018n04n to-220c

PARAMETERSYMBOLVALUEUNITDrian-to-Source VoltageVDSS40VGate-to-Source VoltageVGSS±20VDrain Current(continuous)ID(T=25ºC)300A(T=100ºC)180ADrain Current(Pulsed)IDM720ASingle Pulse Avalanche EnergyEAS1600mJTotal DissipationTa=25ºCPtot2.3WTC=25ºCPtot273WJunction TemperatureTj-55~175ºCstorage TemperatureTstg-55~175ºC  FeaturesFast switchingLow ON ResistanceLow Gate Charge100% Single Pulse Avalanche Energy Test100% ΔVDS TestApplicationsMotor control and driveBattery managementUPS (Uninterrupible Power Supplies)  Product Specifications and Packaging ModelsProduct ModelPackage TypeMark NameRoHSPackageQuantityDTG018N04NTO-220CDTG018N04NPb-freeTube1000/boxDTJ018N04NTO-262DTJ018N04NPb-freeTube1000/box  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
