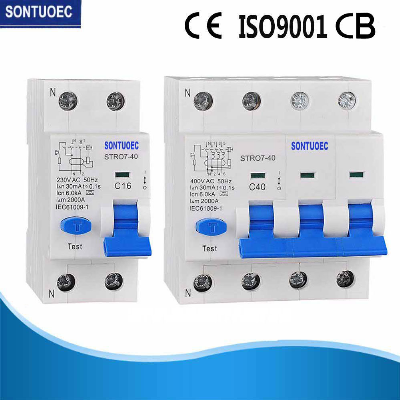

a, AC Residual Current Circuit Breaker with Over Load Current Protection RCBO

Product DescriptionA, AC Type RCBO 2p 4p Residual Current Circuit Breaker with Over Load Protection with CE, CB, SAA Approval and Testing Report 10-40A 30mAGENERAL       RCBO is mainly used in AC 50Hz(60Hz), rated voltage 230/400V, rated current 6A to 40A low voltage terminal distribution system. RCBO is equal with MCB+RCD function; It is used for electric shock protection and human indirect contact protection, electric equipment protection when human body touching electricity or electric network leak current exceeds stipulated value,and over load and short circuit protection ; It can also be a non-frequency operator in the circuit, wildly used in the residential and commercial district. It complies with standard of IEC61009-1. SPECIFICATIONS:  Standard UnitIEC/EN 61009-1ElectricalfeaturesMode  Electro-magnetic type ,electronic typeType(wave form of the earth leakage sensed) A, ACThermo-magnetic release characteristic B,C,DRated current lnA6,10,16,20,25,32,40PolesP1P+N, 3P+NRated voltage UeVAC 230, 400Rated sensitivity I△nA0.01, 0.03, 0.1, 0.3, 0.5Rated residual making and breaking capacity l△mA500Rated short-circuit capacity IcnA6000Break time under I△nS≤0.1Rated frequencyHz50/60Rated impulsewithstand voltage(1.2/50)UimpV4000Dielectric test voltage at ind.Freq for 1minkV2Insulation voltage UiV250Pollution degree 2MechanicalfeaturesElectrical life 4000Mechanical life 10000Fault current Indicator YESProtection degree IP20Ambient temperature(with daily average≤35ºC)ºC-5~+40(Special application please refer totemperature compensation correction)Storage temperatureºC-25~+70InstallationTerminal connection type Cable/Pin-type busbar/U-type busbarTerminal size top/bottom for cablemm225AWG18-5Terminal size top/bottom for busbarmm225AWG18-3Mounting On DIN rail EN 60715(35mm)by means of fast clip deviceConnection From topFAQQ 1. what's the payment term?   A. We accept TT,30% deposit and 70% balance agaisnt copy of BLQ 2. how's the delivery time ? A. usually it will take about 25 days for productionQ 3. tell me the standard of package?   A. Normally are cartons, but also we can pack it according to your requirement.Q 4.Would you accept to use our logo ? A.If you have good quantity,it absolute no problem to do OEM.Q5. Can i take some samples?A: Yes, we support to take samples before place the order. Just feel free to contact with us if you have any requirements.Q6. Are you original Factory?A: Yes, we have our own factory .Q7. How can you make sure the quality of the products?A: We will accord to international quality standards to inspect every item before leaving our factory.Thanks for your reading.If any product meets your need.Welcome to send us an email.We are sure your any information can be attentioned without any delay./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
