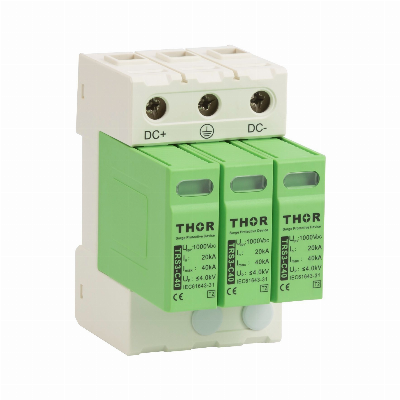

PV SPD 600V DC Solar Surge Protector

   TRS3 surge protector series is suitable for the new energy solar photovoltaic power generation systems or other dc power supply system of lightning protection, the maximum continuous operating voltage DC500V, 800 v, 1000 v. Installation position in the dc power supply system, always of lightning current and lightning current directly or indirectly other instantaneous overvoltage protection.Main technical parametersModel and specificatioonTRS3-C40Max continuous operating voltage  Uc(VAC)500V600V800V1000V1200VVoltage protection level  Up(kV)≤1.82.03.03.64.2Max discharge current (8/20μS)  lmax(kA)40Nominal discharge current (8/20μS)20Response time ns
