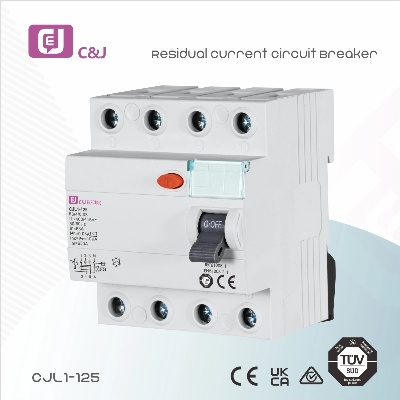

Cjl1-125 63A 30mA 4p Residual Current Circuit Breakers RCCB

  Product Description1.CJL1-125 Type B Residual Current Circuit Breaker (RCCB), suitable for rated voltage 230V at two poles, 400V at four poles, rated current n line 63A, when the person gets an electric shock or the grid leakage current exceeds the specified value, the residual current action circuit breaker can quickly cut off the fault power supply for protecting the safety of human body and electrical equipment can also be used for infrequent switching of circuits and infrequent starting of motors.2.It complies with standard of IEC61008-1,EN61008-2-1Product Advantages1.Operating mechanism is plastic structure, operatingperformance is more stable and reliable than metalstructure. such as release force, mechanical life cycle.For environmental protection is better than metal typeand also the type is new generation mechanism.2.Inside all current-carrying parts: copper.3.All screws are with the plastic cover seal the holes,lt's move safety can not open the products in easy.4.A Big sizes transparent signboard can help user makesome special marks in the signboard area.5.The very new tripping structure make more safetyProduct ParametersTechnical DataStandardsIEC61008-1/IEC61008-2-1Rated current16A,20A,25A,32A,40A,50A,63ARated voltage230~1P+N,400V~3P+NRated frequency50/60HzNumber of pole2P,4PModule size36mmCircuit typeAC type,A type, B typeBreaking capacity6000ARated residual operating current10,30,100,300mAOptimum operating temperature-5°C to 40°CTerminal Tightening torque2.5~4N/mTerminal Capacity(top)25mm²Terminal Capacity(bottom)25mm²Electro-mechanical endurance4000 cyclesMounting35mm DinRailSuitable BusbarPIN Busbar  Detailed Information  certification&company ProfileMore products       /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
