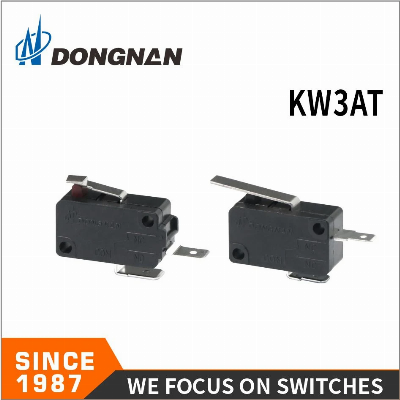

Dongnan High Temperature Micro Switch Kw3at Electric Tools Switch Appliances Switch

Product show Safe,reliable basic switch1.Nice appearance,tight configuration.Characteristic:small contact clearance, quick action,high sensitivity and small operating travel.2.Long life,high reliability.3.A variety of contact terminals4.Wide range of operating force5.A variety of temperature degree6.A variety of levers7.Adopt thermosetting plastic or thermoplastic8.Widely used in home appliance,electronic equipment,automatic machine,communication equipment,car electron,apparatus and instrument, electric motion tool etc.9.Direct current large gap switch can be provided.Technical characterictics ItemValueOperating speed0.1mm-1m/s(Related with actuator forms)Operating Frequency  Mechanical 60 cycle/min; Electrical 25 cycles/minInsulation resistance≥ 100MΩ(500VDC)Contact resistanceOF>0.75N:≤30mΩOF≤0.75N:≤100mΩ (initial value)(Test voltage) Between terminals of the same polarityAC1000V,50/60Hz,1min(Test voltage) Between current-carrying metal parts and ground (case),and between each terminal and non-cueeent-carrying metal parts.             AC3750V,50/60Hz,1minVibration resistance10-55Hz,1.5mm Double amplitudeShock resistanceDestruction:OF>0.5N:1000m/s2(approx.100G)max                   OF≤0.5N:400m/s2(approx.40G)maxMalfunction:OF>0.5N:200m/s2(approx.20G)max                  OF≤0.5N:100m/s2(approx.10G)max LifeMechanical≥2,000,000 cycles       Electrical≥50,000 cyclesWeightApprox.6.2g(No lever)Safety approvalsUL,CUL,VDE,ENEC,SEMKO,DEMKO,NEMKO,FLMKO,CE,EK,CQCCompany Profile    DONGNAN ELECTRONICS CO.,LTD established in 1987, with more than 30 years manufacturing experience in making switches. Mainly produce micro switches, water proof micro switches, power switches, gate control switches, rotary switches, voltage-selected switches etc. We are a national-level new and high-tech  switch manufacturing enterprise that has R&D, producing, marketing and after-sales service, and our switches are widely used in whole China and oversea countries.     At present, we set up many offices and warehouses in the production area which home appliances are concentrated, to build the fastest technical service and logistics distribution system. Company information Exhibition Certifications FAQ Q1.What is your delivery method?Express delivery/Forwarder, depends on customer's requirement.Q2.Are you a trading company or factory? Factory. Q3.Do you offer free samples?Yes, we can offer some free samples.Q4.When will the goods be shipped out after order placed?The production will be arranged after payment, and the delivery date depends on order quantity.  Q5. Do I have more discount if I order large quantity? Better price for large quantity for one shipment.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
