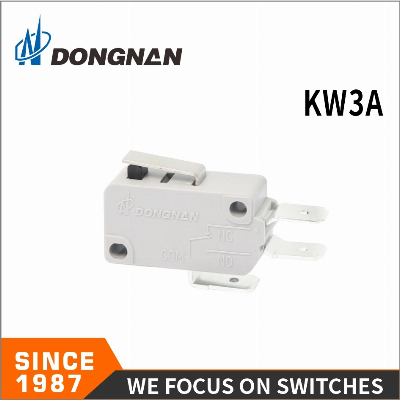

Internal configuration drawing Safe,reliable basic switch1.Nice appearance,tight configuration.Characteristic:small contact clearance, quick action,high sensitivity and small operating travel.2.Long life,high reliability.3.A variety of contact terminals4.Wide range of operating force5.A variety of temperature degree6.A variety of levers7.Adopt thermosetting plastic or thermoplastic8.Widely used in home appliance,electronic equipment,automatic machine,communication 9.equipment,car electron,apparatus and instrument, electric motion tool etc.10.Direct current large gap switch can be provided.Product show Technical characterictics    ItemValueOperating speed0.1mm-1m/s(Related with actuator forms)Operating Frequency  Mechanical 60 cycle/min; Electrical 25 cycles/minInsulation resistance≥ 100MΩ(500VDC)Contact resistanceOF>0.75N:≤50mΩOF≤0.75N:≤100mΩ    (initial value)(Test voltage) Between terminals of the same polarityAC1000V,50/60Hz,1min(Test voltage) Between current-carrying metal parts and ground (case),and between each terminal and non-cueeent-carrying metal parts.             AC3750V,50/60Hz,1minVibration resistance10-55Hz,1.5mm Double amplitudeShock resistanceDestruction:OF>0.5N:1000m/s2(approx.100G)max                   OF≤0.5N:400m/s2(approx.40G)maxMalfunction:OF>0.5N:200m/s2(approx.20G)max                   OF≤0.5N:100m/s2(approx.10G)max LifeMechanical≥2,000,000 cyclesElectrical≥50,000 cyclesWeightApprox.6.2g(No lever)Safety approvalsUL,CUL,VDE,ENEC,SEMKO,DEMKO,NEMKO,FLMKO,CE,EK,CQCCompany Profile     DONGNAN ELECTRONICS CO.,LTD established in 1987, with more than 30 years manufacturing experience in making switches. Mainly produce micro switches, water proof micro switches, power switches, gate control switches, rotary switches, voltage-selected switches etc. We are a national-level new and high-tech  switch manufacturing enterprise that has R&D, producing, marketing and after-sales service, and our switches are widely used in whole China and oversea countries.     At present, we set up many offices and warehouses in the production area which home appliances are concentrated, to build the fastest technical service and logistics distribution system. Company information Exhibition Certifications FAQ Q1.Compared with others, how is your price?Our switch quality is guaranteed, the price is the factory price, no middlemen, good quality, good price.Q2.How many square meters of your factory?Our new factory is about 74,336 square metersQ3.Does your product meet ROHS standards?Yes, we meet ROHS standardsQ4.What Quality Assurance System does your factory pass?GB/T19001-2008,  ISO45001:2004,  BSOHSAS18001:2007, QC080000 , IATF 16949Q5.Do we have chance to be your dealer?If your company can meet the conditions, we will evaluate and apply for you to be our dealer.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
