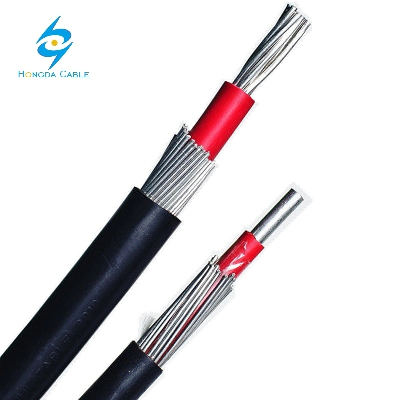

Aluminum Concentric Neutral Cable XLPE Concentric Cable 2x16mm 2x6AWGTags: Copper Concentric BS 7870 PVC Cable, Aluminum Concentric BS 7870 PVC Cable, Power, PVC.1.Phase conductor:Solidal 16sqm aluminum wire (diameter 4.50mm)2.Insulation :XLPE (nominal thickness :1.0mm,color :red)3.Pilot core plain annealed copper wire 0.5sqm(diameter 0.8mm )4.Pilot core insulation diameter min 1.13(the actual approximation :1.7mm) LLDPE5.Neutral conductor :solidal aluminum wire (12/1.31)6.Binder tape :non-hygroscopic tape7.Ripcord8.Sheathed:LLDPE (nominal thickness :1.6mm, color black )CONCENTRIC AND SPLIT CONCENTRIC CABLES APPLICATION OVERVIEWHongda Cables supplies a comprehensive range of concentric and split concentric cables manufactured in accordance with standard BS7870. These aluminium and copper cables are UK Power Network (UKPN) approved and are devised for use by Distribution Network Operators (DNOs) to provide the final connection to residential properties. Additional functionality includes use for sub-main distribution and within high-rise buildings and street lighting systems.The choice between Concentric and Split Concentric cable is determined by the supply type: TN-C-S supply for Concentric and TN-S supply for Split Concentric. These are LSZH cables (low smoke zero halogen) with the outersheath suitable for installations requiring a reduction to the risk to human life or sensitive equipment in the event of fire.0.6/1kv Concentric Cables APPLIICATIONThese cables are used for power supplies with Protective Multiple Earthing (PME) systems, where a combined Protective Earth (PE) and Neutral (N) - together known as the PEN - connects the combined neutral-and-earth to real earth at multiple locations to reduce the risk of electric shock in the event of a broken PEN. Aluminium concentricCopper concentricConductorSolid aluminium (Class 1)Stranded copper conductor (Class 2)InsulationXLPE (Cross-linked Polyethylene)XLPEConcentric conductorSingle layer of plain copper wiresSingle layer of plain copper wiresOutersheathPVC (Polyvinyl Chloride) TM1PVC TM1 Aluminium Concentric BS 7870 PVC CableNO. OF CORESNOMINAL CROSS SECTIONAL AREAmm2NOMINAL OVERALL DIAMETERmmNOMINAL WEIGHTkg/km12513300135143903252365033525820 Copper Concentric BS 7870 PVC CableNO. OF CORESNOMINAL CROSS SECTIONAL AREAmm2NOMINAL OVERALL DIAMETERmmNOMINAL WEIGHTkg/km148.51401161237012514550 0.6/1kv Split Concentric Cables APPLIICATION These cables are used when the power supply has separate PE & N conductors and are only combined as PEN near the power source. The Protective Earth and Neutral are not connected after the building entry point. Aluminium split concentricCopper split concentricConductorSolid aluminium (Class 1)Stranded copper (Class 2)InsulationXLPEPVC Type TI1Neutral conductorPlain copper wires (Class 1) covered with blue polymeric insulationPlain copper wires (Class 1) covered with blue polymeric insulationEarth continuity conductorPlain copper conductor (Class 1)Plain copper conductor (Class 1)String separatorNon-hygroscopic string separatorNon-hygroscopic string separatorOutersheathPVC TM1 or LSZHPVC TM1 Aluminium Split Concentric BS 7870 PVC CableNO. OF CORESNOMINAL CROSS SECTIONAL AREAmm2NOMINAL OVERALL DIAMETERmmNOMINAL WEIGHTkg/km125154901351661032523.5830335261030 Copper Split Concentric BS 7870 PVC CableNO. OF CORESNOMINAL CROSS SECTIONAL AREAmm2NOMINAL OVERALL DIAMETERmmNOMINAL WEIGHTkg/km1410190116145301251671033528.51900 Hongda Cables supplies a comprehensive range of concentric and split concentric cables manufactured in accordance with standard BS7870. These aluminium and copper cables are UK Power Network (UKPN) approved and are devised for use by Distribution Network Operators (DNOs) to provide the final connection to residential properties. Additional functionality includes use for sub-main distribution and within high-rise buildings and street lighting systems.The choice between Concentric and Split Concentric cable is determined by the supply type: TN-C-S supply for Concentric and TN-S supply for Split Concentric. These are LSZH cables (low smoke zero halogen) with the outersheath suitable for installations requiring a reduction to the risk to human life or sensitive equipment in the event of fireCONTACT US FOR MORE :Quotation engineering consultant: Anna /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
