Mica Tape Insulated Glass Fiber Electric Wire

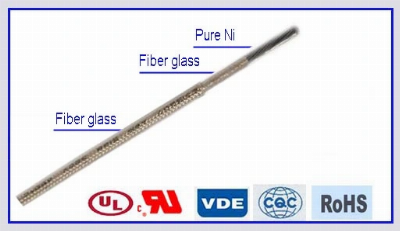

AMP300 FIRE RESISTANT HIGH TEMPERATUREELECTRIC WIRE          CONDUCTOR :Nickel coated copper, Pure Nickel                                  Insulator :Mica taped                                                            Jacket: Glass Fiber Braiding                                                                        High temperature resin coating     RATED TEMP. : 450ºCPEAK TEMP: 500ºCRATED VOLTAGE :300V Test Voltage: 2000V. 1Min  Standards Applied: * Flame retardant acc. to IEC 60332-1* No flame propagation acc. to IEC 60332-3* Low smoke emission acc. to IEC 61034* Corrosiveness of combustion gases acc. to IEC 60754-2* Halogen free acc. to IEC 60754-1Meet with RoHS, REACH rules.  Characteristics:Mica tape wire is made of Mica tape as the insulation, by wrapping the tape on the conductor, then fiber glass yarn braiding layer on the Mica tape, PTFE or Special resin coating on the the jacket. This kind of cable can bear much higher temperatuer to 500C deg.   The use of Mica tape, extra high temperature resistant insulation material, gives the cable excellent heat resistant and good dielectric strength.  The braided synthetic yarn covering, which is applied directly over the insulation, gives the cable, because of its short braiding pitch and high compactness, an excellent mechanical protection by maintaining good flexibility.   Application: For internal wire connection of High temperature environment of electric appliance like: water heater, oven, furnace and aviation, military, etc.     SizeConductorInsulation Braiding thicknessWire ODResistanceAWGsectionstructureODNominalODNominalToleranceΩ/KMNO.mm²No./mmmmmmmmmmmmmmMax.240.2057/0.200.600.381.360.181.75±0.2093220.3247/0.2540.760.381.520.181.90±0.2055200.51910/0.260.960.381.720.182.10±0.2034.6180.80316/0.261.200.381.960.182.35±0.2023.2161.3126/0.261.500.382.260.182.65±0.2514.6142.0841/0.261.900.382.660.183.05±0.258.96123.3165/0.262.400.383.160.183.55±0.255.6447/0.30105.26100/0.263.200.514.220.385.00±0.303.5575/0.3088.367158/0.264.400.515.420.386.20±0.302.30119/0.30710.55199/0.264.600.515.620.386.40±0.301.79150/0.30613.30250/0.265.300.516.320.387.10±0.401.42189/0.30516.77238/0.306.000.517.020.387.80±0.401.12133/0.40421.15300/0.306.800.517.820.388.60±0.500.89168/0.40  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
