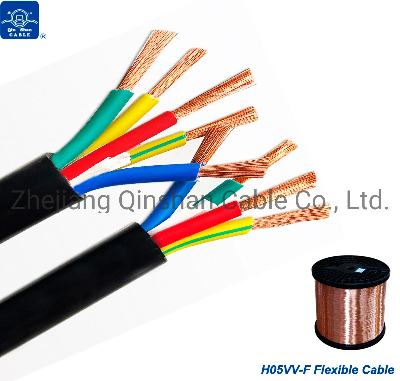

4cx6mm 4cx10mm 4cx16mm 5cx6mm 5cx10mm 5cx16mm Flexible Power Cable

4CX6mm 4CX10mm 4CX16mm 5CX6mm 5CX10mm 5CX16mm flexible power cableConstruction :Conductor: H03VV-F/ H05VV-F  Bare copper fine wire or Copper Clad Aluminum Wire(CCA Wire)(stranded)  class5  acc.to IEC60228Insulation:PVC Compound Sheath:PVC Compound Sheath Color:White ,Black,GreyTechical Data :Standard:IEC 60227-5 / VDE 0281/NFC-32-201Fixed installed: -30ºC  up to +70ºC     At short circuit of max.5s  up to 160ºC  Nominal Voltage: : H03VV-F   300/300V                 H05VV-F   300/500VMin inner bending radius:4D for D12mmBehaviour in fire:Flame retardant cable acc.to IEC60332-1                                                                                                                                                                               Application:          Flexible cable(H03VV-F/ H05VV-F) for medium mechanical stresses. Permitted frequent bending and twisting. Specially suitable for application in household, kitchens and offices in dry and damp conditions, for inst. washing-machines, dryers, refrigerators etc., as long as the cable is adapted to essential specifications of the device. Also suitable for cookers, i.e. hot devices, on condition that it does not get in direct contact with hot parts of the device and is not exposed to heat irradiation. Suitable for fixed installation in furniture, partition walls, decorative linings and cavities in prefabricated construction elements.Size Techical Parameter:  No.of cores x Nominal section areaNominal Construction of conductorNominalInsulationthicknessNominalSheath thicknessNominalOverall diameterNominalCable weightMax.Resistance of conductorat 20ºCNo.X mm²No.X mmmmmmmmkg/km
