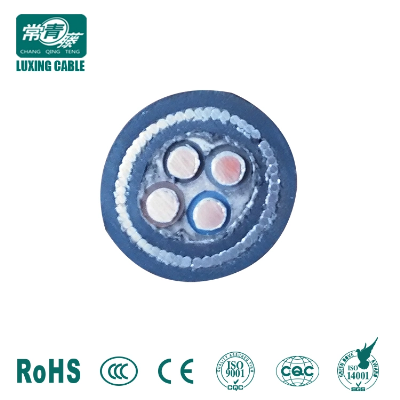

4 Cores 16mm Electric Cable Armoured Power Cable

ITEM NAME : 4 cores 16mm electric cable armoured power cable 1. SCOPEThis specification covers PVC or XLPE insulated, circular, twin, three or four conductorarmored cables, rated at 0.6/1 KV to international Electrotechnical commission Publication IEC60502-1 for use indoors, outdoors, in cable ducts, in water and for direct burial underground, where severe mechanical stresses are present. These cables have high dielectric strength, an excellent resistance to deformations under high temperature and pressure, and high resistance to ageing, abrasion, moisture, chemicals, acids and oils.2. CONSTRUCTION2.1 ConductorPlain, annealed electrolytic copper or Aluminum conductors, solid, circular stranded, or sectoral stranded, conforming to the applicable requirements of IEC 60228.2.2 InsulationPVC based thermoplastic or XLPE thermosetting material, conforming to the applicable requirements of IEC 60502-1.2.3 AssemblyInsulated conductors are laid up, filled where necessary with non-hygroscopic material and covered with an extruded thickness of thermoplastic material.2.4 ArmorGalvanized round wires, or flat strips, completely covering the assembly of cores and a counter helix of galvanized steel tape on top; or two layers of steel tape, complying to the applicable requirements of IEC60502-1.2.5 SheathPVC based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.2.6 TestsConforming to the applicable requirements of IEC 60502-1 either on Raw materials or on finished products. 3. TYPES of Power Cable 0.6-1KV XLPE Insulated SWA Steel WireArmored Cable:Armored Cable Type                       Low Voltage Armored Power Cable                                       SpecificationCopper CoreAluminum CoreVV22VLV22Galvanized Steel Tape Armored Power Cable With PVC Insulation and PVC SheathVV23VLV23Galvanized Steel Tape Armored Power Cable With PVC Insulation and PE SheathVV32VLV32Fine Steel Wire Armored Power Cable With PVC Insulation and PVC SheathVV33VLV33Fine Steel Wire Armored Power Cable With PVC Insulation and PE SheathVV42VLV42Thick Steel Wire Armored Power Cable With PVC Insulation and PVC SheathVV43VLV43Thick Steel Wire Armored Power Cable With PVC Insulation and PE SheathYJV22YJLV22Galvanized Steel Tape Armored Power Cable With XLPE Insulation and PVC SheathYJV23YJLV23Galvanized Steel Tape Armored Power Cable With XLPE Insulation and PE SheathYJV32YJLV32Fine Steel Wire Armored Power Cable With XLPE Insulation and PVC SheathYJV33YJLV33Fine Steel Wire Armored Power Cable With XLPE Insulation and PE SheathYJV42YJLV42Thick Steel Wire Armored Power Cable With XLPE Insulation and PVC SheathYJV43YJLV43Thick Steel Wire Armored Power Cable With XLPE Insulation and PE SheathLuxing Factory : our production base Luxing Cable Mainly Produce 300/500V 450/750V electrical wire AAC conductor 600/1000V PVC insulated cableAAAC conductor 600/1000V XLPE insulated cableACSR conductor 1.8/3KV to 26/35KV power cable OPGW Armored underground cableABC cable Control cable and instrumentation cables Rubber cableCertificates Strict Quality Test Packaging & ShippingWhy choose us 1.18 years manufacturing experience2.Professional international trade team3.Delivery on time4.Factory low price and high quality based on advanced technology and high work efficiency Contact Information   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
