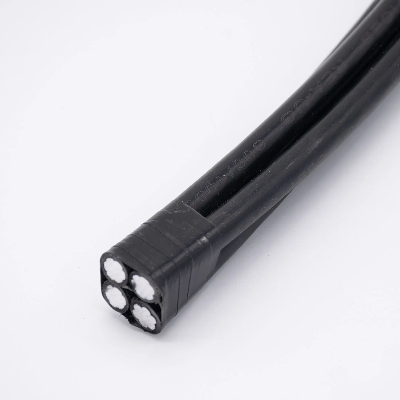

GB Standard 1*16 Aluminium Alloy Electrical Wire XLPE Insulated ABC Cable

1.Production Description:ABC cable(Aerial Bundled Cables or Aerial Bundled Conductors)are several phase conductors insulated and tightly bundled together with bare/insulated netral conductor for use in overhead power lines. This is AAAC core with XLPE insulation ABC and we can supply this cable according differernt recognized standards, such as ASTM,IEC,NFC and GB.2.Standards:Rated Voltage 1kV Overhead Cable & ABC (Aerial Bundled Cable)Description Specification(mm2)  Conductor  (No./mm)Insulation Thickness/mmCable Overall Diameter/mm20oC Conductor DC Resistance   (Ω/km)Cable Weight   (kg/km)Overhead Cable, Single Core, Aluminium Conductor, XLPE Insulation  (AL/XLPE)1×107/1.351.0 5.8 3.0841.42 1×167/1.71.2 7.2 1.9165.24 1×257/2.21.2 8.4 1.2093.85 1×357/2.561.4 9.8 0.868129.14 1×507/3.051.4 11.1 0.641170.05 1×7019/2.21.4 12.8 0.443233.53 1×9519/2.561.6 14.8 0.320316.64 1×12019/2.851.6 16.2 0.253388.60 1×15037/2.341.8 18.1 0.206485.66 1×18537/2.562.0 20.2 0.164600.46 1×24037/2.952.2 22.8 0.125783.32 ABC Cable, Two Cores, Aluminium Conductor, XLPE Insulation  (AL/XLPE)1×10+107/1.351.0 11.9 3.0884.42 1×16+167/1.71.2 14.7 1.91132.69 1×25+257/2.21.2 17.2 1.20190.36 1×35+357/2.561.4 20.2 0.868263.58 1×50+507/3.051.4 23.0 0.641352.80 1×70+7019/2.21.4 26.3 0.443478.29 1×95+9519/2.561.6 30.5 0.320647.49 1×120+12019/2.851.6 33.6 0.253797.32 1×150+15037/2.341.8 37.6 0.206995.71 1×185+18537/2.562.0 41.8 0.1641229.46 1×240+24037/2.952.2 47.3 0.1251593.87 ABC Cable, Three Cores, Aluminium Conductor, XLPE Insulation (AL/XLPE)2×10+107/1.351.0 12.7 3.08126.25 2×16+167/1.71.2 15.7 1.91198.58 2×25+257/2.21.2 18.4 1.20285.15 2×35+357/2.561.4 21.5 0.868394.01 2×50+507/3.051.4 24.5 0.641524.55 2×70+7019/2.21.4 28.1 0.443714.16 2×95+9519/2.561.6 32.5 0.320967.29 2×120+12019/2.851.6 35.8 0.2531189.81 2×150+15037/2.341.8 40.0 0.2061486.23 2×185+18537/2.562.0 44.5 0.1641835.92 2×240+24037/2.952.2 50.3 0.1252385.02 3.Characteristics:*Rated voltage Uo/U is 0.6/1kv.*Max.Continuouspermissive working temperature of conductor: PVC insulation should be not more than 70ºC,and XPLE insulation should be not more than 90ºC.*The installation temperature of cable should not less than -20ºC.*When overall diameter of cable(D) is less than 25mm, permissive bending radius of cable should be not less than 4D. When  overall diameter of cable(D) is equal to and above 25mm, permissive bending radius of cable should be not less than 6D.  ABC CableWe have the complete and systemly production process in each aspects:1).100% product inspect from raw material to the finished products;2).All the products have the test report.    CERTIFICATIONS1.ISO90012.CCCPACKAGING and SHIPPINGFor the ABC cable, we usually use the standard wooden drum to package as the belowing picture. We can design the different package types according to the customers' requirements.  COMPANY INFORMATIONHenan Baofeng Cable Co.Ltd. is founded by one of the most professional manufacturers. We specialize in producing and exporting all kinds of wires and cables. We have advanced tech-staff, advanced equipment and 25 years' experience engineer.  BEST SERVICES   Since we were founded, we have been built favorable business relationship with many customers                         from all over the world.1.Custom Merchandise: We can make cables as your need including the color, size and so on. And we also offer OEM/ODM.2.Own Factory: Reliable source of raw materials, we can offer you the factory price.3.Free Sample: Free sample to provide, but the sample freight must be paied by customers own.4.Speed Delivery: 15-30 days, professional transport team.5.All type test: Professional technical equipment ensure the high quality.  Welcome to visit at any time./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
