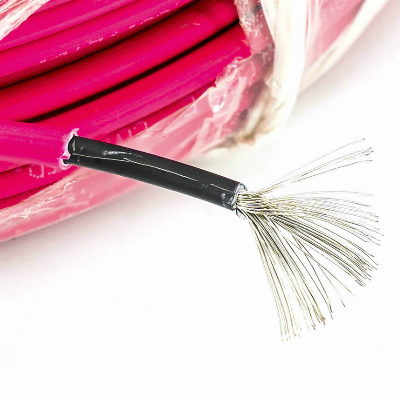

4mm 6mm Solar Panel Wire Cable, PV Wire PV Cable

XLPE insulated 4mm2 6mm2 Photovoltaic cable for solar energy systerm* Cables featuresThey operate at DC voltage and provide long life in exposed conditions.Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat,cold,abrasion,UV, ozone and hydrolysis.  * Cable ApplicationThese cables provide the means to interconnect between photovoltaic(PV) panels and from panels to the inverter. They operate at DC voltage and provide long life in exposed conditions.  NO. OF CORES ×NOMINAL CROSS SECTION NO. OF STRANDING NOMINAL CONDUCTOR DIAMETER NOMINAL INSULATION THICKNESS NOMINAL SHEATH THICKNESS NOMINAL OVERALL DIAMATER NOMINAL WEIGHT NO. ×MM² - MM MM MM MM KG/KM 1×1.5 30/0.25 1.58 1.14 0.82 5.4 52 1×2.5 50/0.25 2.04 1.14 0.82 5.8 67 1×4.0 56/0.30 2.59 1.14 0.82 6.4 87 1×6.0 84/0.30 3.17 1.14 0.82 7.0 113 1×10 78/0.40 4.07 1.52 0.82 8.6 178 1×16 128/0.40 5.22 1.52 0.82 9.8 254 1×25 199/0.40 6.51 1.52 0.82 11.1 363 1×35 279/0.40 7.71 1.52 0.82 12.3 473   FAQQ1: How can I get the Quotation of the products?Pls send your demand or specification to us or just E-mail our trade Manager, We'll reply to you within 2 hours in the Working days.Q2: How could I get the Sample?We are glad to offer you samples if we have it in stock.The sample fee can be returned to you on your first time mass order (deduct from the total amount). If you have a courier account or forwarder in China, we can send it your courier to collect samples.Q3: I didn't find my needed model in this page. Do you provide OEM Project Service?Surely , our factory could manufacturing more than10000 models, OEM & ODM order is warmly welcome and we can put your brand name (logo) on these products. Q4: How long is the Delivery Time?For Sample: 1-3 working days ;For small orders: 3-10 working days;For mass orders: 10-18 working days.It is better to communicate with us if you are interested to place an order. It depends on your order quantity.Q5: What are your payment terms?Our payment term is usually 30% deposit in advanced, the balance T/T Before shipping.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
