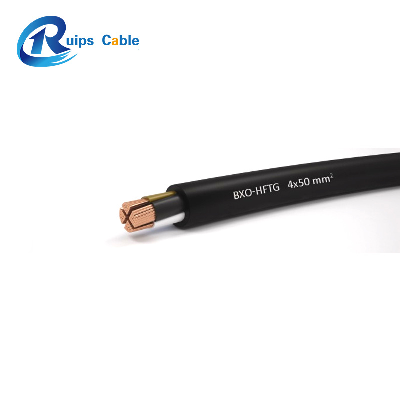

Bxo-Hftg Flame Retardant Halogen-Free Shipboard Cable

 ApplicationPower and signal shipboard cable for fixed installation inside the ship acc. to IEC 60092-352 standard. Specially suitable for passenger ships because of improved characteristics under fire. Also applied at open sea platforms.advantages:- retained electric function of system within specified time- halogen-free, no release of toxic and corrosive gases under fire- reduced smoke manifestation under fire- no flame propagation in vertical cable bundle, flame retardant- resistant to oils and greases- improved mechanical characteristics, resistant to scraping and vibrations- smaller cable diameter and weightonductor:bare or tinned copper conductor, multi wire stranded, class 2 acc. to IEC 60228 / HD 383 / DIN VDE 0295, round or sectorInsulation:cross-linked polyethylene - XLPE, acc. to IEC 60092-351 (more recent mark for cross-linked polyethylene: PE-X), concentrically stranded cores, with or without green-yellow protective conductorFiller:polyolefin based compound: or without fillerSheath:polyolefin, type SHF1 or SHF2 acc. to IEC 60092-359sheath colour:black or greyTemperature range: during installation:-20 °C up to +70 °Cfixed installed:-30 °C up to +80 °Cmax. operating temp.:90 °C (ili 85 °C)Nominal voltage:Uο/U = 0,6/1 kVTest voltage:3,5 kVMin. inner bending radius: round conductor, diameter < 25 mm²:4Dround conductor, diameter > 25 mm²:6Dsector conductor:8DFlame retardant:IEC 60332-1Flame resistant:IEC 60332-3 kat. AHalogen-free:IEC 60754-1Non-corrosive combustion gases:IEC 60754-2Low smoke density:IEC 61034-2Part No.ConductorInsulationThickness (mm)Diameter (mm)Max. Resistanceat 20ºC(Ω/km)Min. Insulation DCRat 70ºC(MΩ/km)mm2No./mmLower LimitUpper LimitH05V-U / 2491X  (H05Z-U for LSZH)  300/500VH05V-U 0.50.51/0.800.61.92.336.00.014H05V-U 0.750.751/0.970.62.12.524.50.013H05V-U 1.01.01/1.130.62.22.718.10.011H05V2-U  300/500V 90ºCH05V2-U 0.50.51/0.800.61.92.336.00.014H05V2-U 0.750.751/0.970.62.12.524.50.013H05V2-U 1.01.01/1.130.62.22.718.10.011H05V-R  (H05Z-R for LSZH)  300/500VH05V-R 0.50.57/0.300.62.02.436.00.014H05V-R 0.750.757/0.370.62.22.624.50.012H05V-R 1.01.07/0.430.62.32.818.10.011H05V2-R  300/500V 90ºCH05V2-R 0.50.57/0.300.62.02.436.00.014H05V2-R 0.750.757/0.370.62.22.624.50.012H05V2-R 1.01.07/0.430.62.32.818.10.011H05V-K / 2491X   (H05Z-K for LSZH)  300/500VH05V-K 0.50.516/0.200.62.12.536.00.013H05V-K 0.750.7524/0.200.62.22.724.50.011H05V-K 1.01.032/0.200.62.42.818.10.010H05V2-K  300/500V 90ºCH05V2-K 0.50.516/0.200.62.12.536.00.013H05V2-K 0.750.7524/0.200.62.22.724.50.011H05V2-K 1.01.032/0.200.62.42.818.10.010H07V-U / 6491X   (H07Z-U for LSZH)  450/750VH07V-U 1.51.51/1.380.72.63.212.10.011H07V-U 2.52.51/1.780.83.23.97.410.01H07V-U 4.04.01/2.250.83.64.44.610.0085H07V-U 6.06.01/2.760.84.15.03.080.007H07V-U 10.010.01/3.571.05.36.41.830.007H07V2-U  450/750V 90ºCH07V2-U 1.51.51/1.380.72.63.212.10.011H07V2-U 2.52.51/1.780.83.23.97.410.01H07V2-U 4.04.01/2.250.83.64.44.610.0085H07V2-U 6.06.01/2.760.84.15.03.080.007H07V2-U 10.010.01/3.571.05.36.41.830.007H07V-R / 6491X   (H07Z-R for LSZH)  450/750VH07V-R 1.51.57/0.520.72.73.312.10.010H07V-R 2.52.57/0.670.83.34.07.410.009H07V-R 4.04.07/0.850.83.84.64.610.0077H07V-R 6.06.07/1.040.84.35.23.080.0065H07V-R 10.010.07/1.351.05.66.71.830.0065H07V-R 16.016.07/1.701.06.47.81.150.005H07V2-R  450/750V 90ºCH07V2-R 1.51.57/0.520.72.73.312.10.010H07V2-R 2.52.57/0.670.83.34.07.410.009H07V2-R 4.04.07/0.850.83.84.64.610.0077H07V2-R 6.06.07/1.040.84.35.23.080.0065H07V2-R 10.010.07/1.351.05.66.71.830.0065H07V2-R 16.016.07/1.701.06.47.81.150.005H07V-K / 6491X   (H07Z-K for LSZH)  450/750VH07V-K 1.51.530/0.250.72.83.412.10.010H07V-K 2.52.550/0.250.83.44.17.410.0095H07V-K 4.04.056/0.300.83.94.84.610.0078H07V-K 6.06.084/0.300.84.45.33.080.0068H07V-K 10.010.080/0.401.05.76.81.830.0065H07V-K 16.016.0126/0.401.06.78.11.150.0053H07V2-K  450/750V 90ºCH07V2-K 1.51.530/0.250.72.83.412.10.010H07V2-K 2.52.550/0.250.83.44.17.410.0095H07V2-K 4.04.056/0.300.83.94.84.610.0078H07V2-K 6.06.084/0.300.84.45.33.080.0068H07V2-K 10.010.080/0.401.05.76.81.830.0065H07V2-K 16.016.0126/0.401.06.78.11.150.0053Wuxi Reps Power Technology Co., Ltd. is located in C Area, Guanlin Town, Yixing City, Jiangsu Province. Enterprise development environment is superior, convenient transportation conditions, is a focus on special cable research and development, design, manufacturing and sales of a full range of science and technology service enterprises.Our company has all kinds of professional production and technical personnel to provide technical support, at the same time has advanced professional production line and a complete set of testing equipment, perfect testing system and strict process testing to ensure the stability of product quality.The company's main flexible cable, drag chain cable, tensile wear-resistant coil cable, grab cable. Garbage cable, scraper cable, gantry cable, coil cable, high flexibility cable, encoder cable, robot cable, robot arm cable, palletizer cable, tower cable, crane cable
