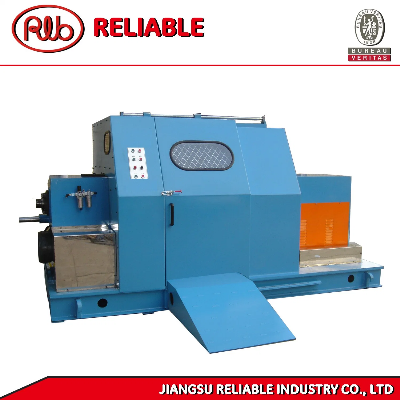

Tubular Type Stranding Machine1.Description:Tubular type stranding machine works with 100% back twist movement. This machine is suitable for stranding 7/12/19 round or sector shape cable of copper/aluminum conductors as well as for steel wires stranding.The machine is made with encircling bearings, it is suitable for high rotation speed and no-noise rotation. The wire tension control is done through band type brakes or with Germany hysteresis brakes (Optionally).Main rotor of the machine as well as the pulling capstan and the take up unit are independently driven by motor.The machine is provided with MMI+PLC control system for pre-setting stranding pitch, wire tension control, automatic tension compensation control and for speed synchronization with the take up unit.Each bearing is equipped with pump lubricating circulating system to provide high pressure injection type lubricating and cooling.2.Equipment Pictures:3.Technical parameterModelunitRLB-50RLB-56RLB-63  7B12B7B12B7B12BPay Off Ømm500500560560630630Take Up ØMm125012501600160018001800Copper Wire ØMm0.8-3.20.8-3.21.0-3.61.0-3.61.2-4.01.2-4.0Aluminum Wire ØMm1.2-4.01.2-4.01.4-4.51.4-4.51.6-5.01.6-5.0MotorKw7513075759595Rotor SpeedRpm1200850100010009090Line Speedm/min120120120120120120Capstan Powerkw37-4537-4537-5537-5537-5537-554.Layout:5.Application Demonstration:Suitable for high-speed stranded 7/12/19 round, compressed copper and aluminum conductor or steel wire;  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
