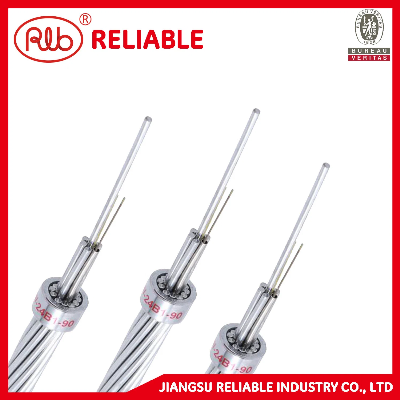

Stainless Steel Tube Opgw for Optical Fiber Composite Overhead Ground Wire

Product Name:Optical fiber composite overhead ground wire(OPGW)1, Application: OPGW is mainly applied in communication line of newly constructed high voltage transmit electricity system with 35 KV or above, or replacement of existing ground wire of previous overhead high voltage transmit electricity system, adding of communication lines and conduction of short-circuit current or provision of anti-lightning protection. 2, Feature:   Diameter of the cable is small with a low additional load to the pole and tower.Design of stainless steel tube is reasonable and excess lengths of the fiber is correct.Stainless steel tube protects the fiber with powerful tensile strength.Optical unit of the stainless steel tube is the interlayer of the cable and it can resist twist and has good lateral pressure performance.With good safety performance and strong shooting resistance performance,  not easy to be stolenDifferent armor combinations or meeting different combinations of electrical and mechanical property.  3, Standard IEEE 1138  IEC607944, Packing:Wooden drum or Iron wooden drum5,Technical Parameter: ModelConductor modelStructure(No.of wires/wire dia-spec.)Cross sectionOuter diameterUnit weightRated tensile strength20ºC DC resistanceCarrying capacityCentre layerFirst layerSecond layerThird layerASAWTotal    40ºC-70ºC40ºC-80ºC40ºC-90ºCASOptical unitASAWAWn/mm-ASn/mm- coren/mm-ASn/mmn/mmmm2mm2mm2mmKg/kmkNΩ/kmAAAOPPC-16B1-85/25LGJ-95/201/2.4-20AS1/2.3-16B15/2.3-20AS9/3.5-25.3086.59111.914.043040.90.303233277319OPPC-36B1-90/50LGJ-95/551/3.4-14AS1/3.2-24B15/3.3-14AS13/3.0-51.8491.89143.716.065085.50.277230270301OPPC-16B1-120/20LGJ-120/201/2.4-20AS1/2.3-24B15/2.3-20AS8/4.2-25.30110.84136.115.449045.50.242265315365OPPC-24B1-120/25LGJ-120/251/2.5-20AS1/2.4-24B15/2.4-20AS8/4.35-27.53118.89146.416.053049.30.225285348399OPPC-16B1-150/25LGJ-150/251/2.4-20AS1/2.3-16B15/2.3-20AS11/2.617/2.625.30148.6617417.459554.50.184331407469OPPC-24B1-150/30LGJ-150/351/2.6-14AS1/2.5-24B15/2.5-14AS12/2.518/2.529.85147.26177.117.664065.70.188330405466OPPC-16B1-185/25LGJ-185/251/2.4-20AS1/2.3-16B15/2.3-20AS10/3.016/3.025.30183.78209.119.069565.80.150379468540OPPC-24B1-185/40LGJ-185/451/2.85-20AS1/2.7-24B15/2.8-20AS12/2.818/2.837.17184.73221.919.6579579.70.147379469541OPPC-24B1-240/25LGJ-240/301/2.5-20AS1/2.4-24B15/2.4-20AS9/3.615/3.627.53244.29271.821.788576.60.114445552639  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
