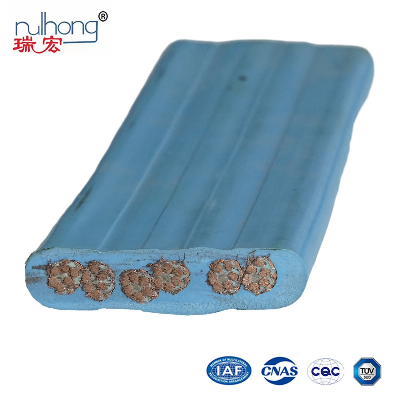

Nitrile Insulated and Sheathed Copper Braided Shielded Mobile Crane Special Cable

Product DescriptionNitrile polyvinyl chloride flat cableThis product has characteristics such as cold resistance, softness, wear resistance, and oil resistance, and is suitable for AC rated electricityVehicles, trolleys, and transmission machines with special requirements for cold resistance, oil resistance, etc. for pressures of 450/750V and belowThis product is widely used in power transmission lines, control, lighting, and communication lines for mobile appliances such as machineryApplied in industries such as metallurgy, electricity, shipbuilding, ports, etc.1. Usage characteristics:Long term allowable working temperature of the cable: -40 ºC~+90 ºC. Environmental temperature during cable laying:Not less than 0 ºC.Cable bending radius: The flat shape should not be less than 15 times the size of the small side of the cable.2. Technical performance:The DC resistance of each cross-section conductor core at 20 ºC complies with GB/T3956-97. Guide for each sectionThe insulation resistance of the wire core at 70 ºC shall comply with GB5023-97. Finished cable core to core withstandThe test voltage of 50Hz and 30KV is applied for 5 minutes without breakdown. Minimum tensile strength of insulation and sheath 10N/mm2The minimum elongation at break is 150%- 40 ºC low temperature impact without cracking, -40 ºC low temperatureThe minimum elongation during stretching is 20%. The finished cable can withstand a combustion test, and after the test, the flame on the surface of the sample extinguishes itself, and the distance between the burnt part and the lower edge of the fixture on the test deviceThe distance should not be less than 50mm.  3.YVFB:Nitrile polyvinyl chloride insulated and sheathed flat flexible cable    YVFBP:Nitrile polyvinyl chloride insulated and sheathed copper wire braided shielded flat flexible cable  Nominal cross-section(mm2)Conductor structure(mm)Insulation thickness(mm)sheath thickness(mm)Approximate outer diameter(mm)3x1.548/0.200.61.46x134x1.548/0.200.61.45x155x1.548/0.200.61.56.5x196x1.548/0.200.61.56.5x217x1.548/0.200.61.562x5.88x1.548/0.200.61.56.7x3010x1.548/0.200.61.56.7x38.512x1.548/0.200.61.57x4713x1.548/0.200.61.56.2x48.52x2.579/0.200.82.06.5x103x2.579/0.200.82.06.5x144x2.579/0.200.82.06.9x16.55x2.579/0.200.82.07.2x22.56x2.579/0.200.82.07.5x277x2.579/0.200.82.07.5x32.58x2.579/0.200.82.07.8x34.59x2.579/0.200.82.07.5x37.510x2.579/0.200.82.07x42  Nominal cross-section(mm2)Conductor structure(mm)Insulation thickness(mm)sheath thickness(mm)Approximate outer diameter(mm)12x2.579/0.200.82.07.5x50.53x4127/0.201.02.08x164x4127/0.201.02.08.5x225x4127/0.201.02.08.5x286x4127/0.201.02.07.5x297x4127/0.201.02.08.5x368x4127/0.201.02.08.5x403x6190/0.201.02.09x194x6190/0.201.02.09.5x24.55x6190/0.201.02.09x306x6190/0.201.02.09x367x6190/0.201.02.09.5x418x6190/0.201.02.09.5x4010x6190/0.201.02.011.5x583x10317/0.201.22.010x244x10317/0.201.22.212x336x10317/0.201.22.212x487x10317/0.201.22.211x542x16507/0.201.22.513x213x16507/0.201.22.513x304x16507/0.201.22.513x375x16507/0.201.22.516x456x16507/0.201.22.513x582x25352/0.301.43.016x263x25352/0.301.43.015x354x25352/0.301.43.015x462x35493/0.301.43.018x303x35493/0.301.43.018x424x35493/0.301.43.018x553x50496/0.401.63.020x464x50496/0.401.63.020x553x70555/0.401.63.222x543x95753/0.401.83.629x703x120951/0.401.84.030x72Detailed Photos  Company ProfileHebei Haihe Special Cable Co., Ltd., founded in 2008, is a limited liability company. Our company specializes in the production of power cables, irradiation cross-linked wires and cables, flame retardant wires and cables, fire resistant wires and cables, low smoke and halogen-free wires and cables, control cables, shielded cables, computer cables, frequency conversion cables, and pre branched cables. The registered capital of the enterprise is 66 million yuan, and the factory area covers an area of 30 mu. Equipped with dedicated production equipment, laboratories, workshops, and warehouses.Product standards are in accordance with international GB/T12706.1-2020 and GB/T9330.2-2020 executive standards. The quality assurance system is complete, and the enterprise is equipped with full-time inspectors and complete product quality testing reports. Our company always adheres to the historical mission of "providing customers with better products and services at reasonable prices, providing employees with better job opportunities, creating broader development space for the enterprise, and creating more benefits for the society"; Establish the values of "integrity, integrity, fairness, pragmatism, and stability", and have a complete, fast, and excellent service sales network.FAQ 1. Which markets are you mainly involved in?Our products are mainly exported to Africa, the Middle East, Southeast Asia, South America, Central America, North America, Europe, Australia, etc.2. How can I get the sample?Please provide details of the samples you require. If we do not have an exact model, please consider whether a similar model is suitable for yo
