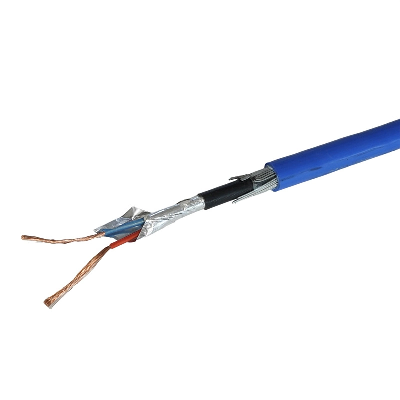

PVC Insulated Copper Core Control Cable/Wire

Product DescriptionKVV is a PVC insulated PVC sheathed control cable that is suitable for wires with a rated voltage of 450/750V or less or 0.6/1kV or less. The structure can be divided into four parts: conductor, insulating layer, tape, and sheath. This type of wire belongs to multi-core wires, with the number of wire cores ranging from 2-61 cores. The more common types include 3-core, 5-core, 8-core, and 16-core wires. Kvv wires are commonly used for wiring control systems and signal systems, and are widely laid indoors, in pipelines, and other fixed applications.Introduction to the meaning of the name of the kv control cable series:KVV PVC insulated PVC sheathed control cableKVVP PVC insulated PVC sheathed braided shielded control cableKVVP2 PVC insulated PVC sheathed copper tape shielded control cableKVV22 PVC insulated PVC sheathed steel tape armored control cableKVV32 PVC insulated PVC sheathed fine steel wire armored control cableKVVR PVC insulated PVC sheathed control flexible cableKVVRP PVC insulated PVC sheathed braided shielded control flexible cableKVVP22 PVC insulated PVC sheathed copper wire braided shield steel tape armored control cableKVVP2-22 PVC insulated PVC sheathed copper tape shielded steel tape armored control cableDetailed PhotosProduct Parameters modelProduct NameVoltage (V)Number of coresSection (mm ²)Main scope of applicationKVVCopper core PVC insulated PVC sheathed control cable450/7504-370.75-10Laid indoors, in fixed places such as cable trenches and pipelinesKVV22Copper core PVC insulated PVC sheathed steel tape armored control cable450/7504-370.75-10Installed indoors, in cable trenches, directly buried pipelines, and other fixed occasions that can withstand large mechanical external forcesKVVPCopper core PVC insulated and sheathed braided shielded control cable control cable450/7504-370.75-10Laying indoors, in cable trenches, pipelines, and other fixed occasions requiring shieldingKVVRCopper core PVC insulated PVC sheathed control flexible cable450/7504-370.75-10Laid indoors, with mobility requirementsKVVRPCopper core PVC insulated PVC sheathed braided shielded control flexible cable450/7504-370.75-10Laid indoors, where mobile shielding is requiredZRKVVFlame retardant copper core PVC insulated PVC sheathed control cable450/7504-370.75-10Laying indoors, in cable trenches, pipelines, and other fixed occasions requiring flame retardanceZRKVV22Flame retardant copper core PVC insulated PVC sheathed braided steel tape armored control cable450/7504-370.75-10Installed indoors, in cable trenches, directly buried pipelines, and other fixed occasions that can withstand large mechanical external forces and have flame retardant requirementsZRKVVPFlame retardant copper core PVC insulated PVC sheathed braided shielded control cable450/7504-370.75-10Installed indoors, in cable trenches, pipelines, and other fixed occasions requiring shielding and flame retardanceZRKVVRFlame retardant copper core PVC insulated PVC sheathed braided control flexible cable450/7504-370.75-10Laid indoors, where there are mobile and flame retardant requirements.ZRKVVRPFlame retardant copper core PVC insulated PVC sheathed braided shielded control flexible cable450/7504-370.75-10Laid indoors, where there are mobile shielding and flame retardant requirements. order numberNumber of cores × sectionmm2Conductor structurePieces/diameter mmCalculated outer diameter mminsulationCablingOuter diameter after wrapping non-woven fabric mmsheathNominal thickness mmNominal outer diameter mmCalculated outer diameter mmFill Root × diameterNominal thickness mmNominal outer diameter mm12×1.51/1.381.380.72.785.562×1.55.961.28.3623×1.51/1.381.380.72.785.993×1.56.391.28.7934×1.51/1.381.380.72.786.714×1.57.111.29.5145×1.51/1.381.380.72.787.51 7.911.210.3157×1.51/1.381.380.72.788.34 8.741.211.1468×1.51/1.381.380.72.789.17 9.571.211.97710×1.51/1.381.380.72.7811.122×1.511.521.514.52812×1.51/1.381.380.72.7811.55 11.951.514.95914×1.51/1.381.380.72.7812.274×1.512.671.515.671016×1.51/1.381.380.72.7813.061×1.513.461.516.461119×1.51/1.381.380.72.7813.90 14.301.517.301224×1.51/1.381.380.72.7816.682×1.517.081.720.481327×1.51/1.381.380.72.7817.11 17.511.720.911430×1.51/1.381.380.72.7817.834×1.518.231.721.631537×1.51/1.381.380.72.7819.46 19.861.723.26 order numberNumber of cores × sectionmm2Conductor structurePieces/diameter mmCalculated outer diameter mminsulationCablingOuter diameter after wrapping non-woven fabric mmsheathNominal thickness mmNominal outer diameter mmCalculated outer diameter mmFill Root × diameterNominal thickness mmNominal outer diameter mm12×2.51/1.781.780.83.386.762×2.57.161.29.5623×2.51/1.781.780.83.387.283×2.57.681.210.0834×2.51/1.781.780.83.388.164×2.58.581.210.9645×2.51/1.781.780.83.389.13 9.531.211.9357×2.51/1.781.780.83.3810.14 10.541.513.5468×2.51/1.781.780.83.3811.15 11.551.514.55710×2.51/1.781.780.83.3813.522×2.513.921.516.92812×2.51/1.781.780.83.3814.04 14.441.517.44914×2.51/1.781.780.83.3814.924×2.515.321.518.321016×
