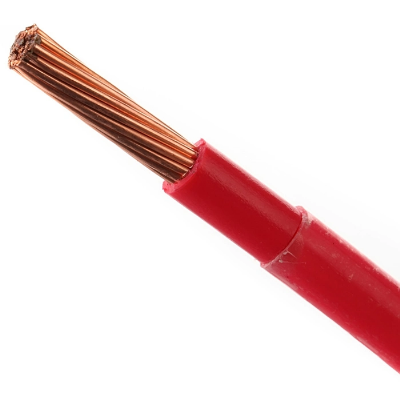

Copper Thhn Wire 12AWG Electric Cables Manufacturers

UL62 THHN THWN-2  CSA T90 TWN75  Nylon wire with UL cUL certification1 Construction:Conductor: flexible copper or aluminumInsulation: flame-retardant PVCSheath: Nylon• Temperature Rating: not more than 90°C• flame retardant and an oil resistant• FT1 TestRated :  THWN: 75°C Oil, 75°C Wet, 90°C Dry· THWN-2: 75°C Oil, 90°C Wet, 90°C Dry· MTW: 60°C Oil, 60°C Wet, 90°C Dry· AWM 1316 to 1321: 80°C Oil, - Wet, 105°C Dry,· AWM 1408 to 1414: 60°C Oil, 60°C Wet, 90°C Dry, · AWM 1452 to 1453: 80°C Oil, - Wet, 90°C Dry, · T90 NYLON: 60°C Oil, - Wet, 90°C Dry, · TWN 75: - Oil, 75°C Wet, - Dry  2 Application: THHN or THWN-2* conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications as specified in the National Electrical Code. When used as Type THHN, the conductor is suitable for use in dry locations at temperatures not to exceed 90°C. When used as Type THWN-2*, the conductor is suitable for use in wet or dry locations at temperatures not to exceed 90°C or not to exceed 75°C when exposed to oil or coolant. When used as Type MTW, the conductor is suitable for use in wet locations or when exposed to oil or coolant at temperatures not to exceed 60°C or dry locations at temperatures not to exceed 90°C (with ampacity limited to that for 75°C conductor temperature per NFPA 79). Conductor temperatures not to exceed 105°C in dry locations when rated AWM and used as an appliance wiring material. Voltage for all applications is 600 volts.Datasheets of THHN/T90-CUConductor AWG or MCMStrandingInsulation Thickness (mm)SheathThickness(mm)Outside Diameter (mm)Weight (Kg/KM)14190.380.102.82412190.380.103.33610190.510.104.2588190.760.135.5966190.760.136.51464191.020.158.32333191.020.159.02882191.020.159.83571191.270.1810.94461/0191.270.1811.85552/0191.270.1812.96983/0191.270.1814.28624/0191.270.1815.51077250371.520.2017.21272300371.520.2018.51521350371.520.2019.71762400371.520.2020.82002500371.520.2022.92482Details show/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
