Overhead AAC AAAC XLPE 15kv 25kv 35kv Aerial Tree Wire

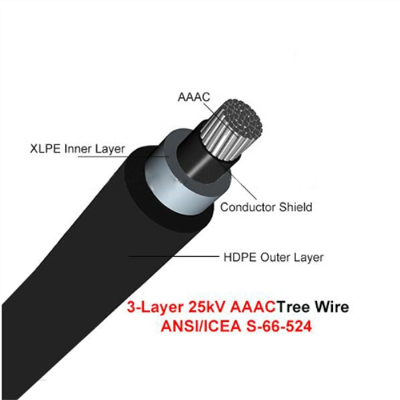

                Overhead AAC AAAC ACSR XLPE Insulation Power Cable 15kv 25kv 35kV HDPE Sheath Aerial Tree WireANSI/ICEA S-66-524, Tree Wire, ACSR/XLPE Aerial Cable, 15 kV 25KV 35KVApplicant:Spacer Cable - Installed with other spacer cables and a supporting messenger through a series of space-maintainingdevices (spacers). The resulting close-proximity configuration minimizes the amount of space and hardware required for line installation particularly useful in congested areas.Cable structure:Number of core: single coreConductor: Compact stranded hard drawn aluminum wire conductor sizes 35mm2 up to 240mm2.Conductor Shield: Semi conductorInsulation: cross-linked polyethylene colour: NaturalSheathed: Track resistant cross-linked polyethylene   Colour: BlackClassification  : Normal operation 90 C                      Emergency overload conditions 130C                        Short circuit conditions 250C                         Voltage rating 35KVTesting Voltage: 49KV for 5minutesReference: ICEA S-66-524Tree wire (tree wire,Medium Voltage Covered Conductor) manufactured by HT meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN,IEC, NFC, SS -etc Conductorstranded aluminum wires (AAC)compacted stranded aluminum conductor (AAC)Insulationblack thermosetting cross-linked polyethylene (XLPE)thermoplastic low density polyethylene (LDPE)thermoplastic high density polyethylene (HDPE)2 Lyers :    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
