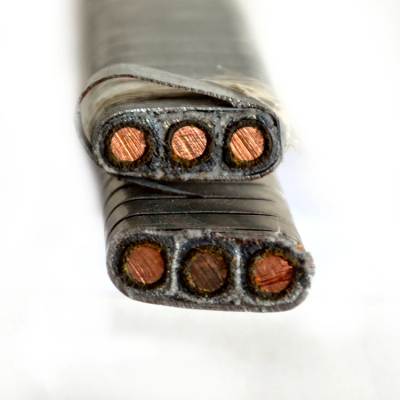

Rubber Sheath Electric Submersible Oil Pump Esp Power Cable

Rubber Sheath Electric Submersible Oil Pump ESP Power CableApplication: It is applied to power supply of ESP(Electric submersible pumps) system with the rating voltage less than 3kV or 6kV, and has an outstanding capability of oil resistance and anticorrosive resistance. The operating temperature of the conductor is 120°C,150°C,180°C,204°C,232°C,etc. The insulation material that can be used is as below: PP, EPR, polyimide-F46, fluoroplastics, XLPE, etc. The material of inner jacket includes NBR, compound of the neoprene and PVC, EPR, fluoroplastics, lea, etc. The outer sheath material is as the galvanized steel tape, stainless steel tape, etc.Standard: IEEE1018 API RP 11S6 GB/T16750 JB5332 Configuration:Conductor -- Solid or stranded tinned copper Insulation -- EPDM/EPR Sheath -- Alloy lead Barrier -- Oil resistant or braid tape Layer(Separator) Armor -- Galvanized or stainless steel interlocked armor Conversion data of the conductor's cross-sectionCross-section(Approximation) mm²10 13 16 20 33 42AWG# 7 6 5 4 2 1Diameter mm3.665 4.115 4.621 5.189 6.544 7.348Cross-section(Actual value) mm²10.55 13.30 16.77 21.15 33.63 42.41Cable type, name and allowed max. working temperature of conductorTypeNameMax. workingtemperature ( ºC )QYPNPP insulated and NBR sheathed, galvanized steel tape interlockedarmoring, cable for submersible oil pump96QYPNYPP insulated and NBR sheathed, galvanized steel tape interlockedarmoring, round cable for submersible oil pump96QYENEPR insulated and NBR sheathed, galvanized steel tape interlockedarmoring, cable for submersible oil pump140QYENYEPR insulated and NBR sheathed, galvanized steel tape interlockedarmoring, round cable for submersible oil pump140QYEEEPR insulated and sheathed, galvanized steel tape interlockedarmoring, cable for submersible oil pump175QYEEYEPR insulated and sheathed, galvanized steel tape interlockedarmoring, round cable for submersible oil pump175QYEQEPR insulated and lead sheathed, galvanized steel tape interlockedarmoring, cable for submersible oil pump204QYYEQPolyimide-F46 composite film and EPR insulated, lead sheathed,galvanized steel tape interlocked armoring, cable for submersibleoil pump232QYYEEYPolyimide-F46 composite film and EPR insulated, EPR sheathed,galvanized steel tape interlocked armoring, round cable forsubmersible oil pump204QYJYEQPolyimide-F46 composite film and EPR insulated, lead sheathed,galvanized steel tape interlocked armoring, lead wire forsubmersible oil pump204 /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
