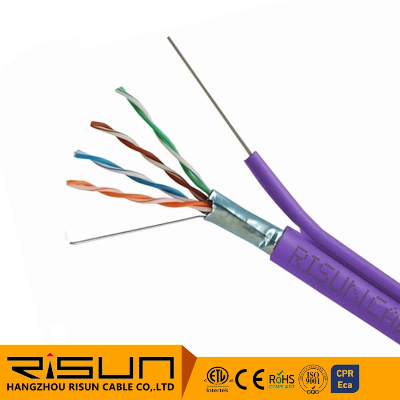

FTP Cat5e LAN Cable with Messenger High Performance

FTP Cat5e Lan Cable with Messenger High PerformanceProduct Description1. Conductor: 0.51±0.01mm(24AWG) Bare copper2. Insulation: 0.97±0.03mm HDPE3. Cores/Pairs: 8/44. Shield: Al/Pet Foil5. Drain: 0.4mm TC6. Sheath: 6.2±0.3mm PVC (PE, LSZH)Options: Jelly Compound, Messenger ,Jacket: UV, FR, RoHS complied. Mechanical Properties:ElongationMin. 300%Temperature Range-20 up to +75° CTensile StrengthMin 1.68kg/mm² Electrical Properties:Conductor ResistanceMax. 9.38 ohm/100mResistance UnbalanceMax. 2%Insulation Resistance150 ohm/KMMutual CapacitanceMax. 5600pF/100mCapacitance UnbalanceMax. 330pF/100mImpedance100+/-15 ohmSpark Test2000VVelocity of Propagation67% Technical Performance:          Attenuation         RL    Next        PS Next       (Mhz)          (dB/100M)        (dB)     (dB)      (dB/100m)       1MHz               2.0         20    65.3          63.5       4MHz               4.1         23    56.3          54.2       8MHz               5.8        24.5    52.4          50.5      10MHz               6.6         25    51.3          49.2      16MHz               8.2         25    49.3          47.4      20MHz               9.3         25    48.8          46.9      25MHz              10.4         24    45.3          43.4   31.25MHz              11.7         23    43.0          41.8     62.5MHz              17.0         21    39.2          37.2     100MHz              22.0         20    36.3          34.4CertificationsCE50575:2014+A1:2016 Power, control and communication cables. Cables for general applications in construction works subject to reaction to fire requirementsFlame ResistanceCPR EcaTesting StandardEN 60332-1-2  Company Profile  Our Advantages1. Any inquiries will be replied within 24 hours.2. Professional manufacturer, 15 years manufacturing experience.    3. OEM or RISUN  available1) Printing your logo on the cable.2) Printing your logo on the pull our box, make according to your design.3) Any your idea on cable, packing box are available.4. High quality, reasonable and competitive price, fast lead time.5. Good after-Sale Service.1) All products will have been strictly Quality Checked in house before packing.2) All products will be well packed before shipping.  6. Faster delivery:7. Shipping:We have strong cooperation with DHL, TNT, UPS, FEDES, EMS, China Air Post. You also can choose your own shipping forwarder.Packing RISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.                                                         WELCOME TO RISUN Our Tenet: If we can not be the best, we be the most suitable./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
